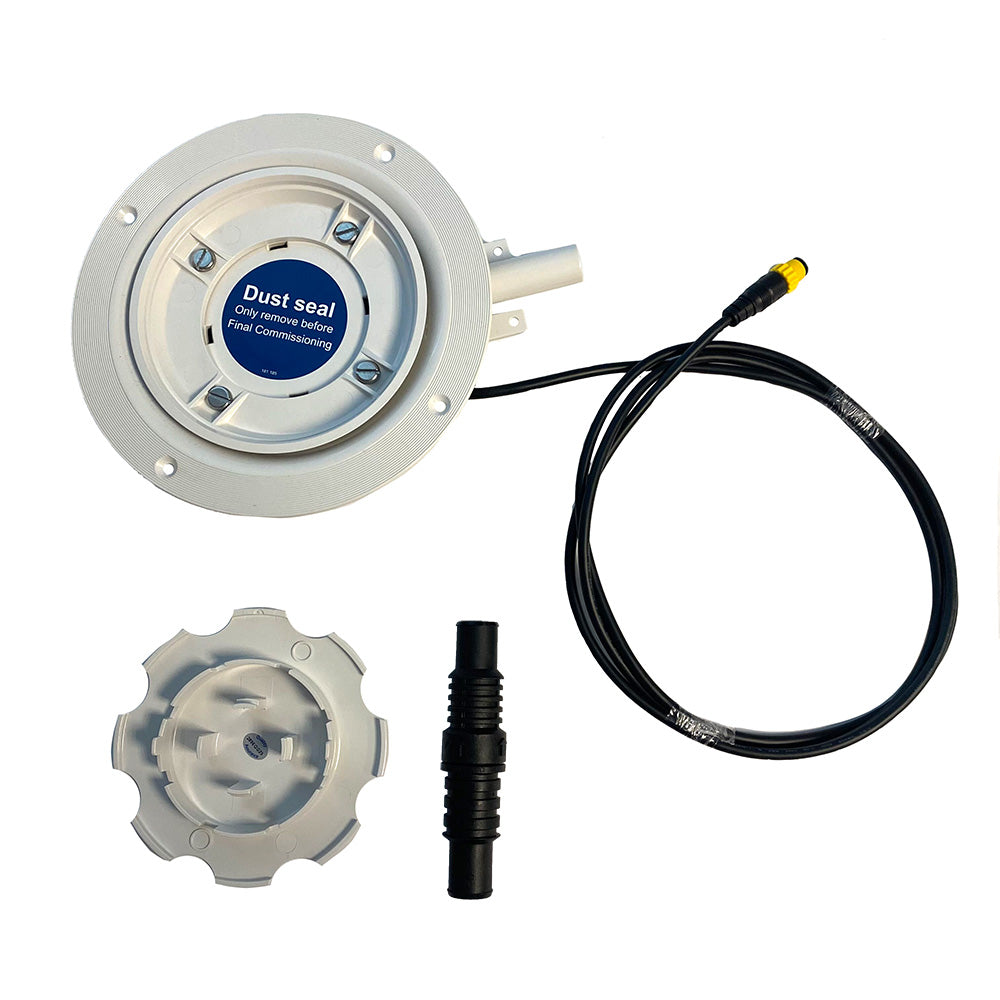

Whale Marine Gulley IC Large Waste Water Outlet with Intelligent Control - Part Number SG1982B

Gulley IC Large Waste Water Outlet

Single-outlet shower drain gulley with intelligent control built in. This product must be used with a Gulper IC since the Gulley IC is connected to a Gulper IC. When the gulley senses water, it sends an electrical signal to the gulper IC, which evacuates the system. As the water level decreases, the electrical signal transmitted by the gulley will cease. Gulper IC will continue to operate for a further 15 seconds before switching off.

Application

Gulley IC is a single outlet shower drain solution and has intelligent control built in (must be operated by a 12/24V Gulper IC unit only). Electronic sensors automatically control grey water waste level when connected to a pre-wired connection to the Gulper IC via Deutsch connectors. Due to remote monitoring, the pump receives signals from the Gulley IC and switches on and off automatically.

In the Box:

• Gulley IC
• Nonreturn valve
• No 8 x 25mm self-tapping screw
• Cable grip

Specifications:

• Cable Length: 2m (6ft.)
• Hose Connections: 19mm (3/4 in.) / 25mm (1 in.)
• Control voltage: 5V dc via Gulper IC Pump
• Current Draw: Low power 6mA supply
• Connectors: Deutsch connectors quick connect series 7 ways (directly onto Gulper IC)

The Whale Marine Gulley IC Large Waste Water Outlet is a sophisticated solution designed for efficient grey water management in marine applications. Featuring intelligent control built into the single-outlet shower drain gulley, this product seamlessly integrates with a Whale Gulper IC pump system to automate waste evacuation. When water is detected, the gulley sends an electrical signal to the Gulper IC, prompting it to activate and evacuate the system. As the water level drops, the signal ceases, and the Gulper IC continues to run for an additional 15 seconds to ensure complete drainage. This intelligent design minimizes manual intervention and enhances onboard sanitation efficiency.

The Gulley IC is designed specifically for use with a 12V or 24V Gulper IC pump, providing a reliable connection through Deutsch quick-connect series 7-way connectors. Its electronic sensors automatically monitor and control grey water levels, making it an ideal choice for modern marine sanitation systems. The system's remote monitoring capability ensures optimal operation, as signals are transmitted from the gulley to the pump, which turns on and off automatically based on water presence. The package includes the gulley, nonreturn valve, a set of self-tapping screws, and a cable grip, providing everything necessary for quick and secure installation.

Constructed with durable materials, the Whale Gulley IC features hose connections for 19mm (3/4 inch) and 25mm (1 inch) hoses, with a cable length of 6 feet (2 meters) for flexible setup. It operates at a control voltage of 5V DC, drawing a low power of just 6mA, ensuring energy-efficient performance. This product complies with safety standards and is Prop 65 compliant, making it a reliable and environmentally responsible choice for marine waste management systems. Whether you're outfitting a new vessel or upgrading existing systems, the Whale Marine Gulley IC Large Waste Water Outlet offers intelligent, efficient, and maintenance-friendly operation for onboard sanitation needs.

Features:

• Intelligent water sensing: Sends electrical signals to control waste evacuation automatically

• Compatible with Whale Gulper IC pumps: Ensures seamless integrated operation

• Durable construction: Designed for marine environment longevity

• Easy installation: Includes nonreturn valve, self-tapping screws, and cable grip

• Flexible hose connections: Supports 19mm (3/4 inch) and 25mm (1 inch) hoses

• Low power consumption: Operates at 5V DC with only 6mA current draw

• Remote monitoring capability: Automates grey water management for convenience

• Quick connect Deutsch connectors: Facilitates fast and secure electrical connections
