Wichard Marine

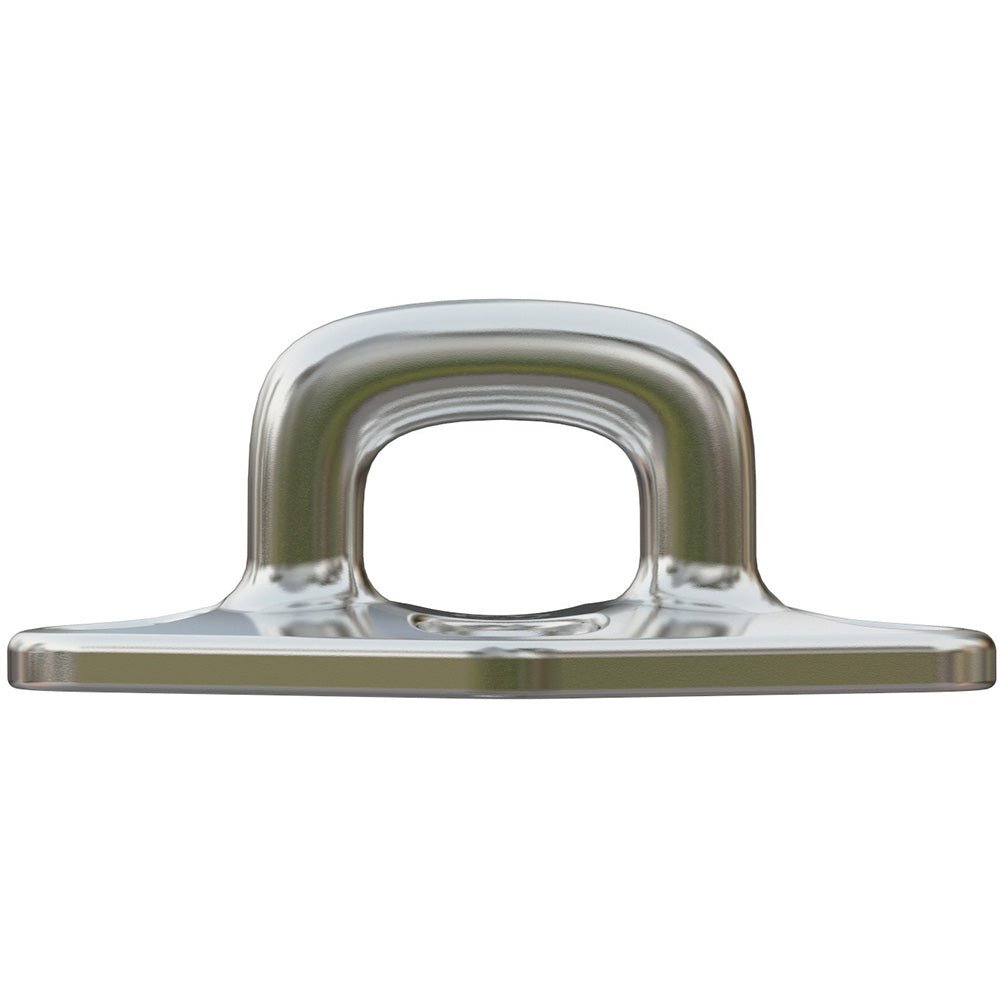

Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

99738

$46.97 USD
$46.97 USD
Sale Sold out
Shipping

Low stock: 3 left
  • 30-Day Returns
  • Secure Checkout
  • Free Shipping — Contiguous U.S.

Shipping & Delivery

Free standard shipping is available on all orders shipping within the Contiguous United States, with no minimum order. Alaska and Hawaii are excluded from free shipping. Orders are typically processed within 1–2 business days. See our Shipping Policy for complete terms.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M5 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 2645.5 / (kg) 1200
  • Breaking Load: (lb) 7054.7 / (kg) 3200
  • Weight: (lb) 0.13 / (g) 59
  • W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
  • W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
  • W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
  • B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
  • B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
  • B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

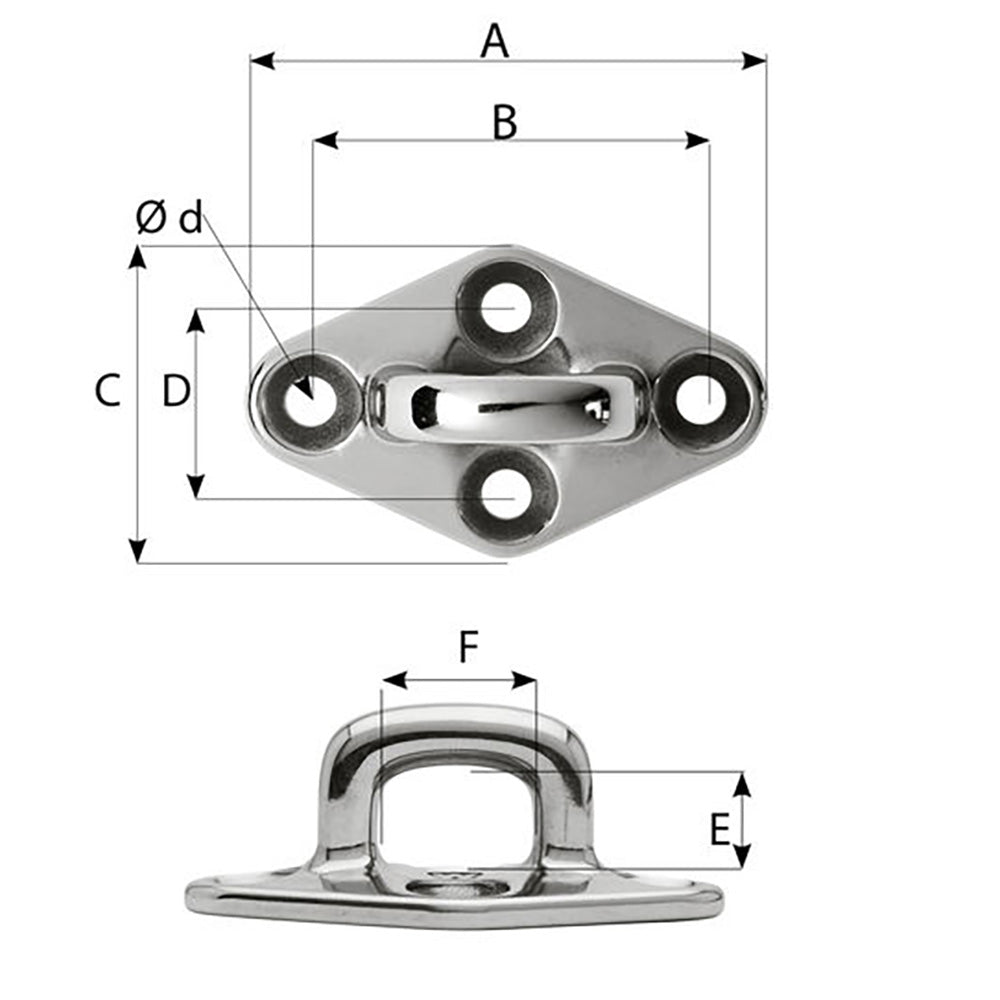

Dimensions:

  • A: (inch) 2 23/64" / (mm) 60
  • B: (inch) 1 13/16" / (mm) 46
  • C: (inch) 1 1/2" / (mm) 38
  • D: (inch) 15/16" / (mm) 24
  • E: (inch) 15/32" / (mm) 12
  • F: (inch) 3/4" / (mm) 19

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
