Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

$38.63 USD
$38.63 USD
Sale Sold out
Shipping calculated at checkout.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

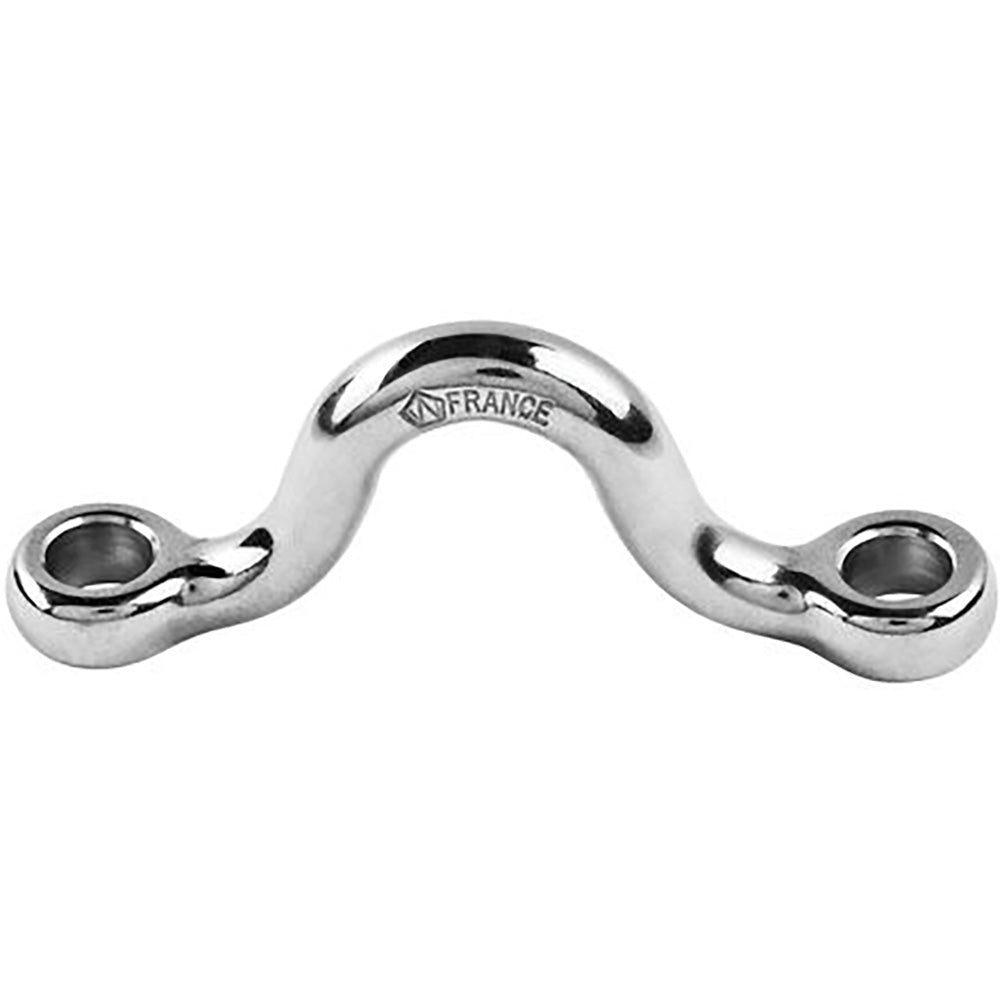

Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

Features:

  • Complete range of drop-forged saddles with high-quality stainless steel (316L)
  • Outstanding strength
  • The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

  • Fastening applications
  • Attachment of straps & cordage

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 15430 / (kg) 7000
  • Weight: (lb) 0.165 / (g) 75

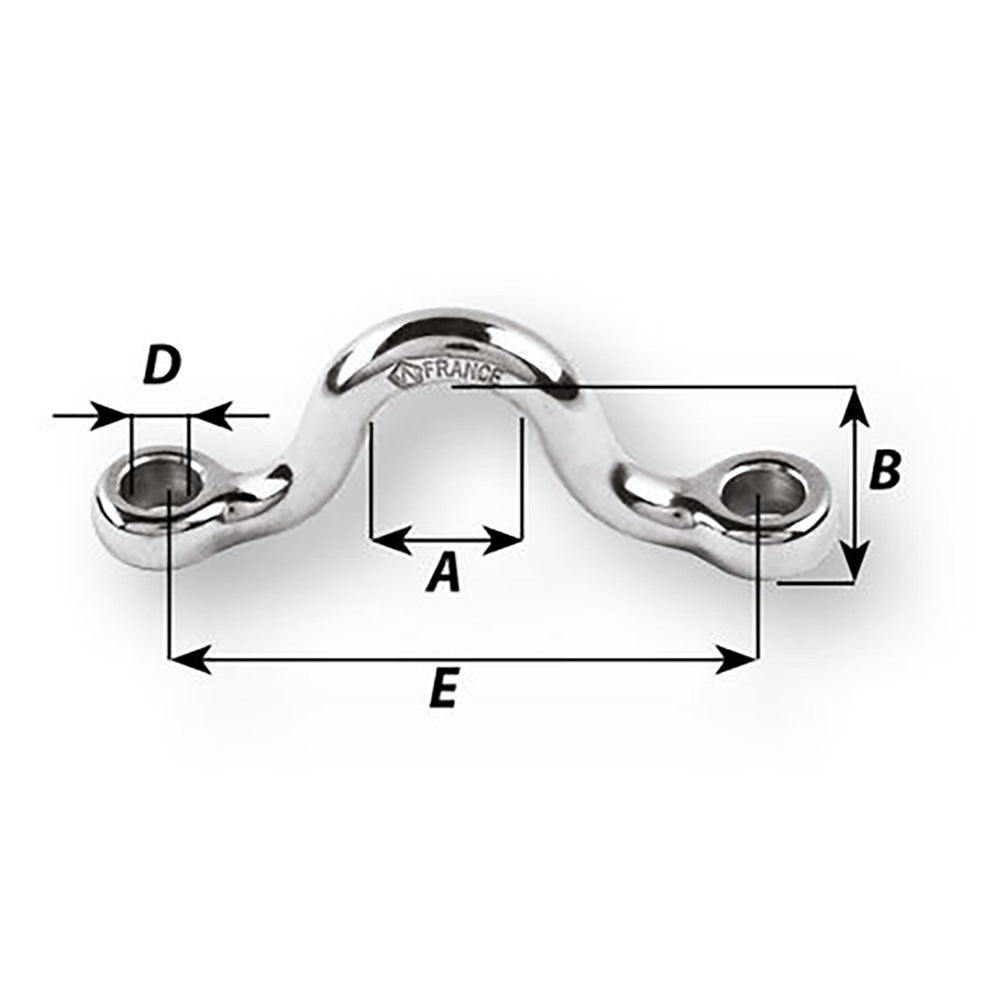

Dimensions:

  • A: (inch) 25/32" / (mm) 20
  • B: (inch) 1 1/32" / (mm) 26
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 3 5/64" / (mm) 78

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
