Wichard Marine

99742

Wichard Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Wichard Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

$50.80 USD
$50.80 USD
Sale Sold out
Shipping calculated at checkout.

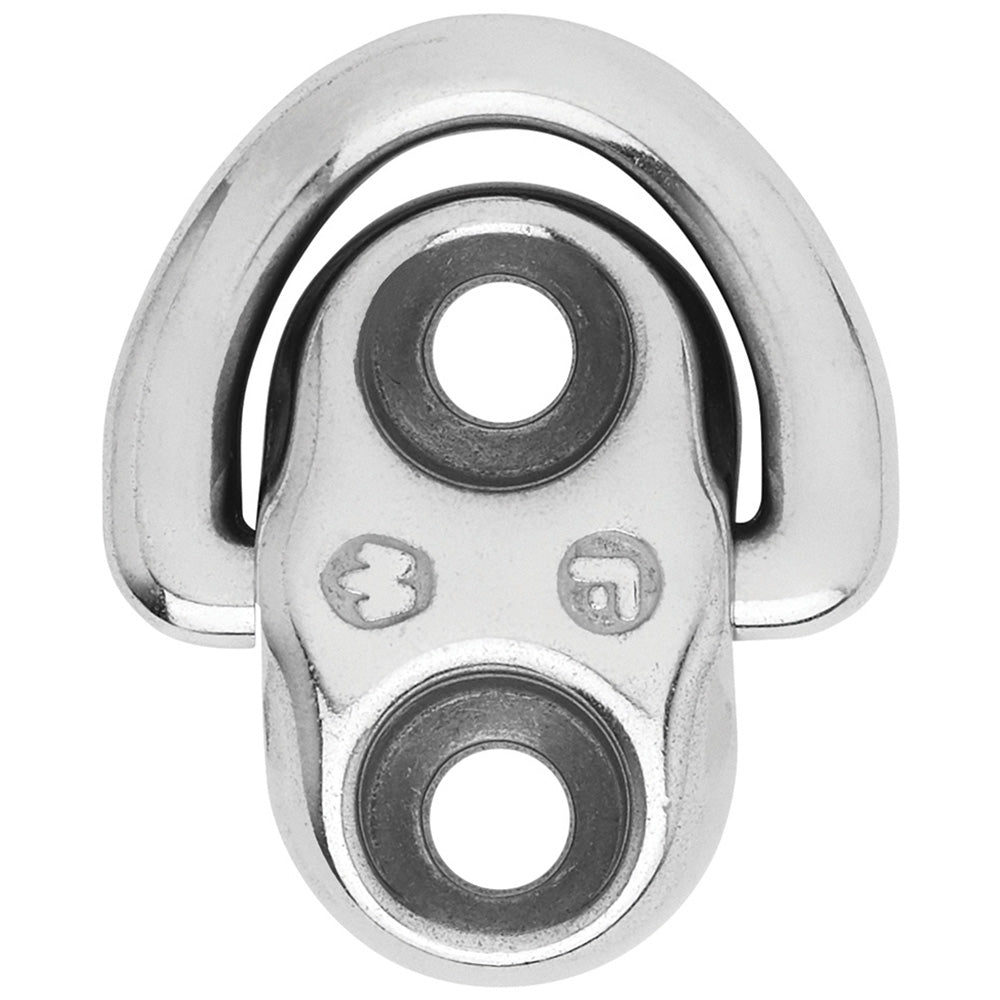

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Features:

  • They are 100% safe and highly resistant to corrosion
  • Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates moist and unpleasant vibrations
  • Modern design

Applications:

  • Fastening applications (stay, blocks, jib tack point, lifeline, etc...)

Specifications:

  • Materials: 316L stainless steel grade
  • Working Load: (lb) 1650 / (kg) 750
  • Breaking Load: (lb) 3520 / (kg) 1600
  • Weight: (lb) 0.123 / (g) 56

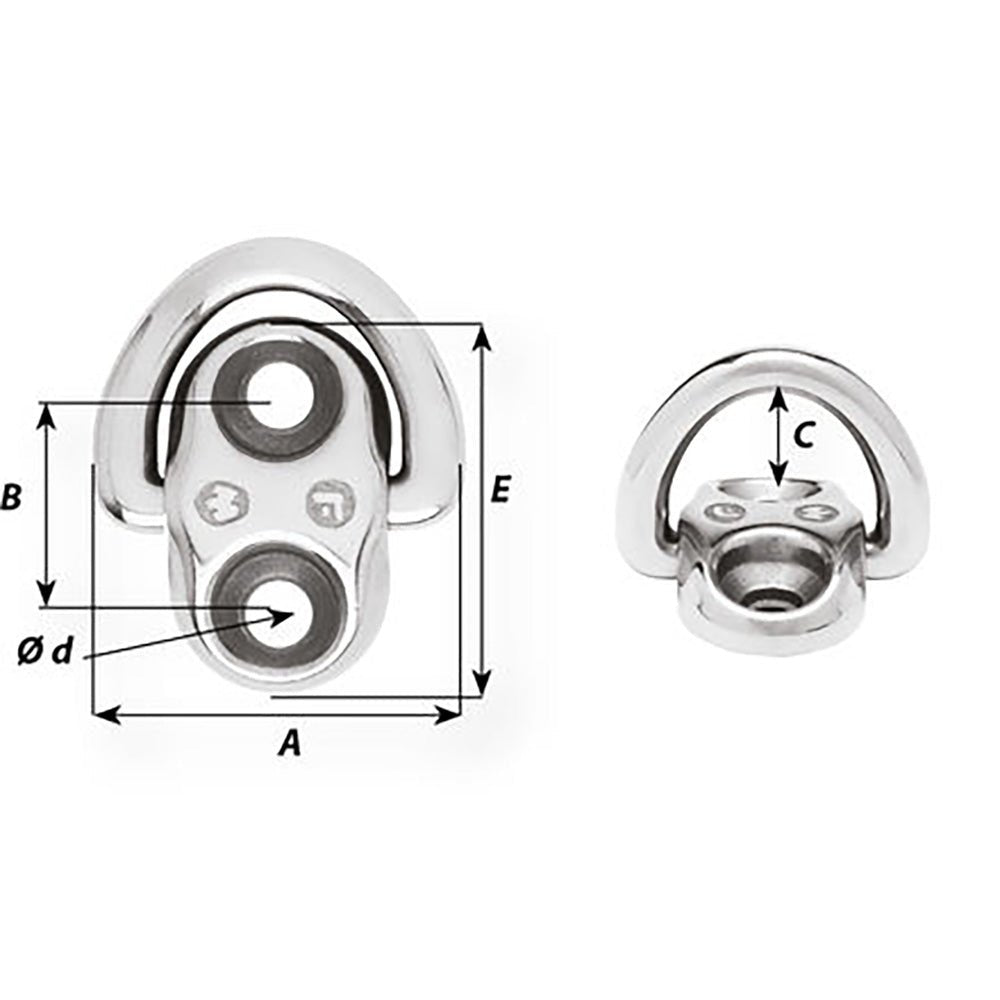

Dimensions:

  • A: (inch) 1 37/64" / (mm) 40
  • B: (inch) 59/64" / (mm) 23.4
  • C: (inch) 19/32" / (mm) 15
  • d diameter: (inch) 9/32" / (mm) 7
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 1 37/64" / (mm) 40

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
