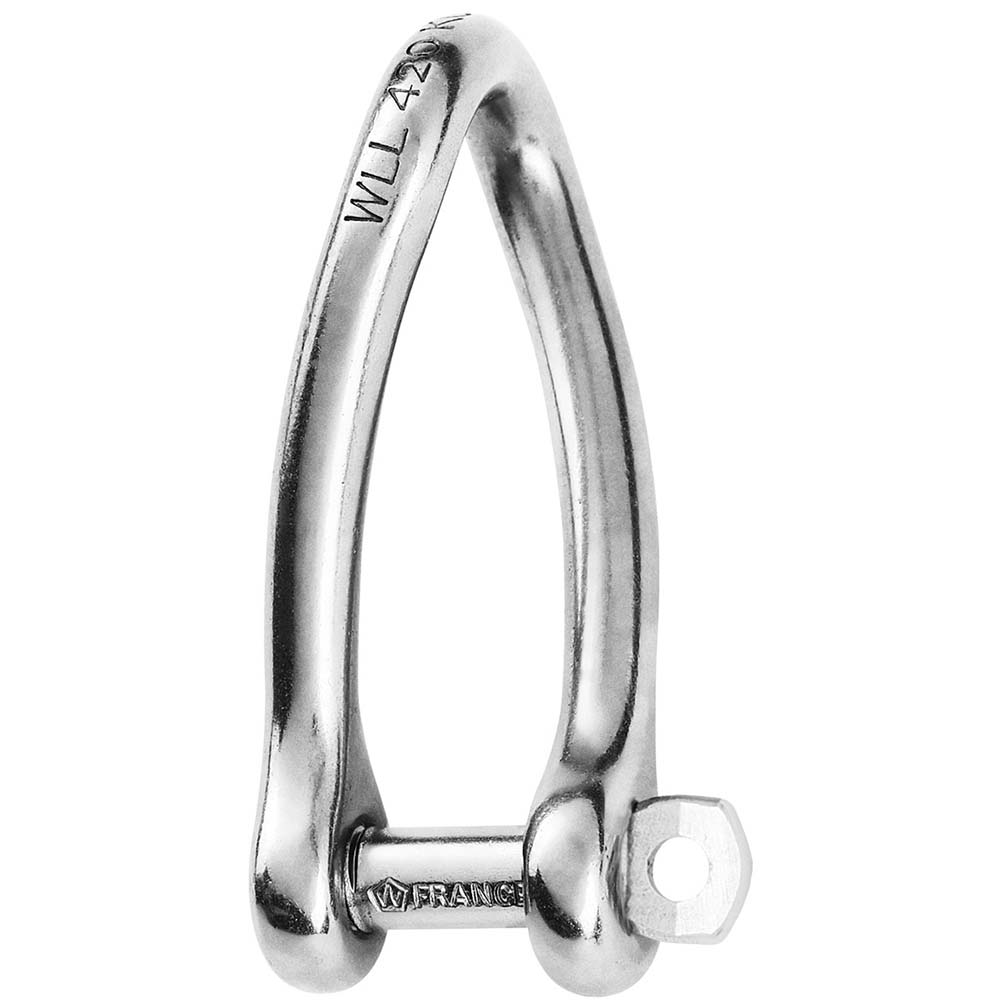

Wichard Marine 1422W Captive Pin Twisted Shackle, 5mm (3/16 in.) 316 Stainless Steel

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• Part # 1422 is not suitable for lifting applications

Applications:

• Perfect for application where a 90 angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• Breaking load (lb) 3300
• Weight (lb) 0.051

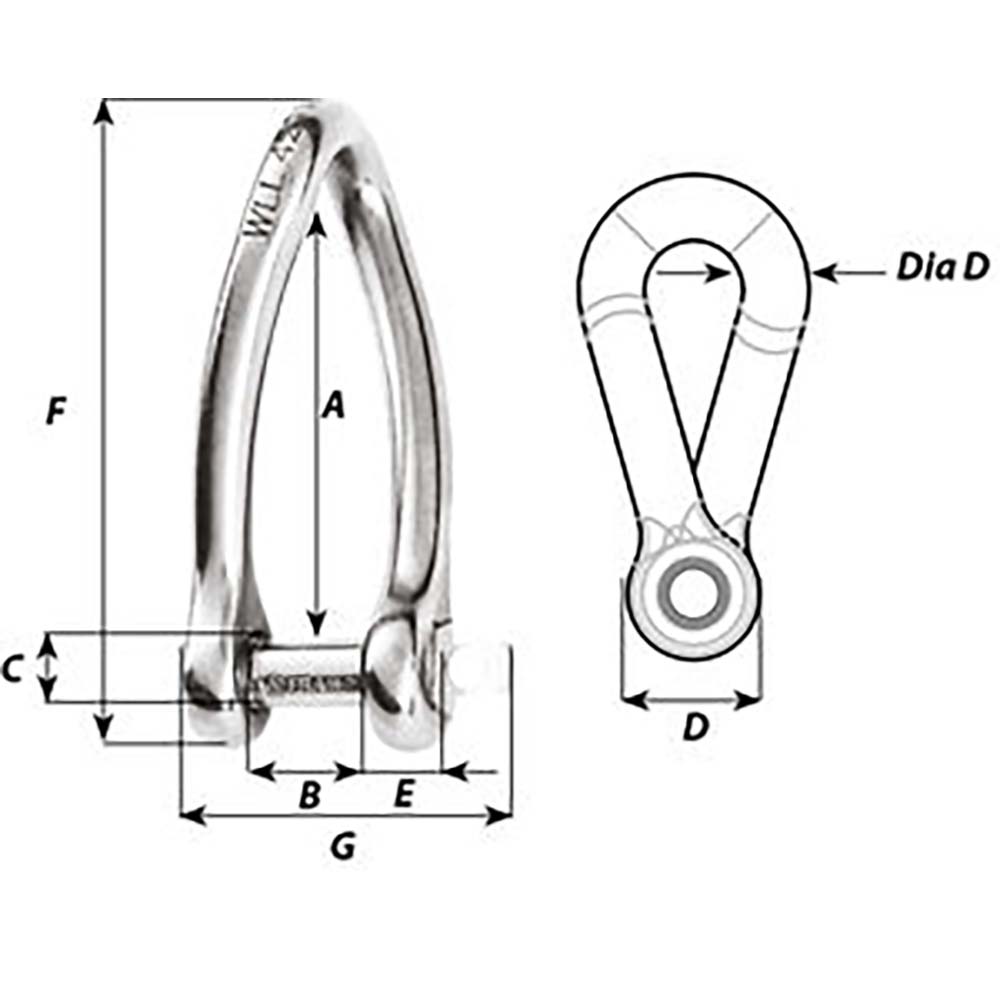

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 1-31/32"
• G (inch) 1-1/16"

The Wichard Marine 1422W Captive Pin Twisted Shackle is a forged 316 stainless steel shackle designed for marine applications requiring a 90-degree twist setup. Its captive pin remains connected to the shackle body when open, helping simplify handling and reduce the risk of losing the pin during installation or adjustment. Single-handed operation supports convenient use when working with blocks, rails, and purchase systems.

The pin locks into one of the body’s indentations to help resist loosening caused by vibration. With a 1,050-pound working load and 3,300-pound breaking load, this twisted shackle is suited to demanding rigging and hardware applications within its stated limitations. Wichard Marine part 1422W is not suitable for lifting applications.

Key Features:

• Captive pin design: Keeps the pin connected to the shackle body even when opened, helping prevent pin loss.
• Twisted configuration: Supports applications requiring a 90-degree twist setup.
• Vibration-resistant pin retention: The pin locks into an indentation to help reduce loosening from vibration.
• Single-handed operation: Allows convenient handling and supports safer operation.
• Marine-grade construction: Forged from 316 stainless steel for marine hardware applications.

Product Details:

• Brand: Wichard Marine
• Part number: 1422W
• Product type: Captive pin twisted shackle
• Diameter: 5mm (3/16 inch)
• Material: 316 stainless steel grade
• Working load: 1,050 pounds
• Breaking load: 3,300 pounds
• Weight: 0.051 pound
• Typical applications: Attaching an unarticulated part, such as a block on a rail, and use on purchase systems
• Use limitation: Not suitable for lifting applications

Choose the Wichard Marine 1422W for dependable, convenient connection hardware where a compact 90-degree twisted shackle configuration is required.
