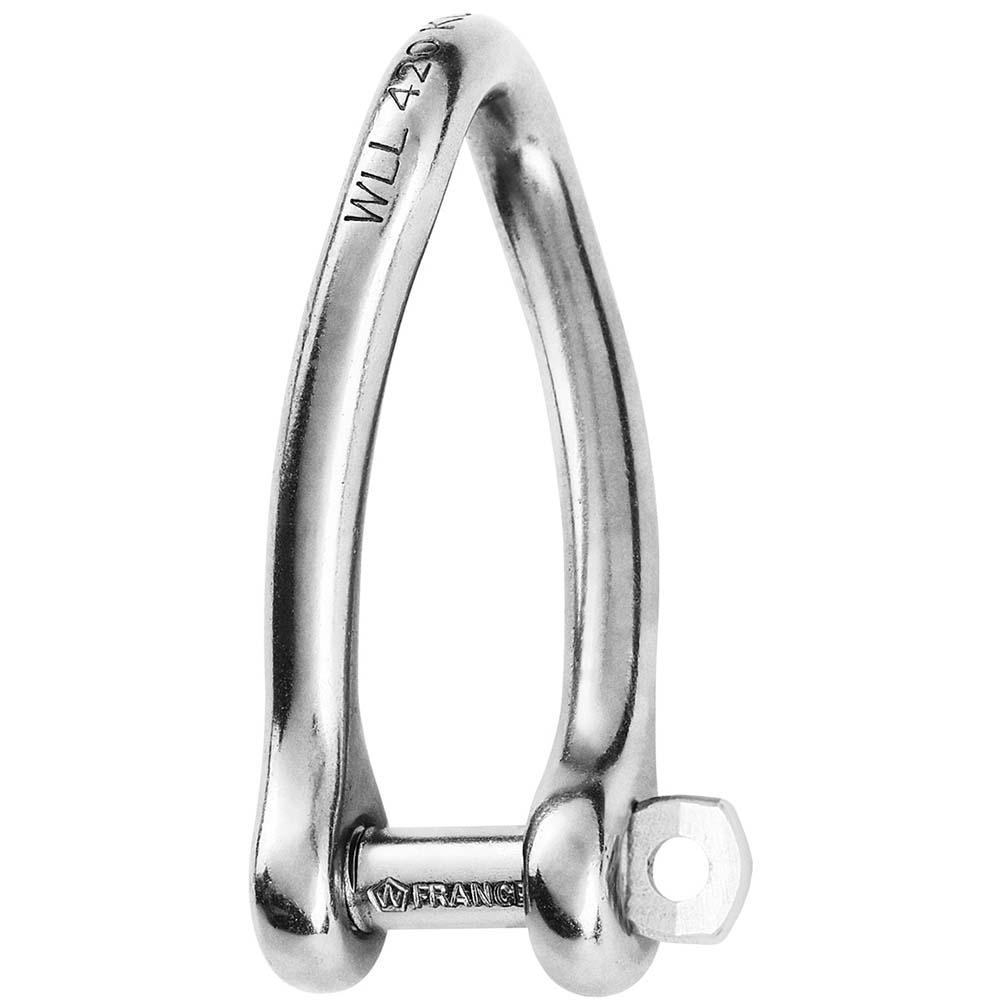

Wichard Marine 1424W Captive Pin Twisted Shackle, 8mm (5/16-Inch) 316L Stainless Steel

Captive Pin Twisted Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• Part #1424 is not suitable for lifting applications

Applications:

• Perfect for application where a 90 angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 8150
• Weight (lb) 0.198

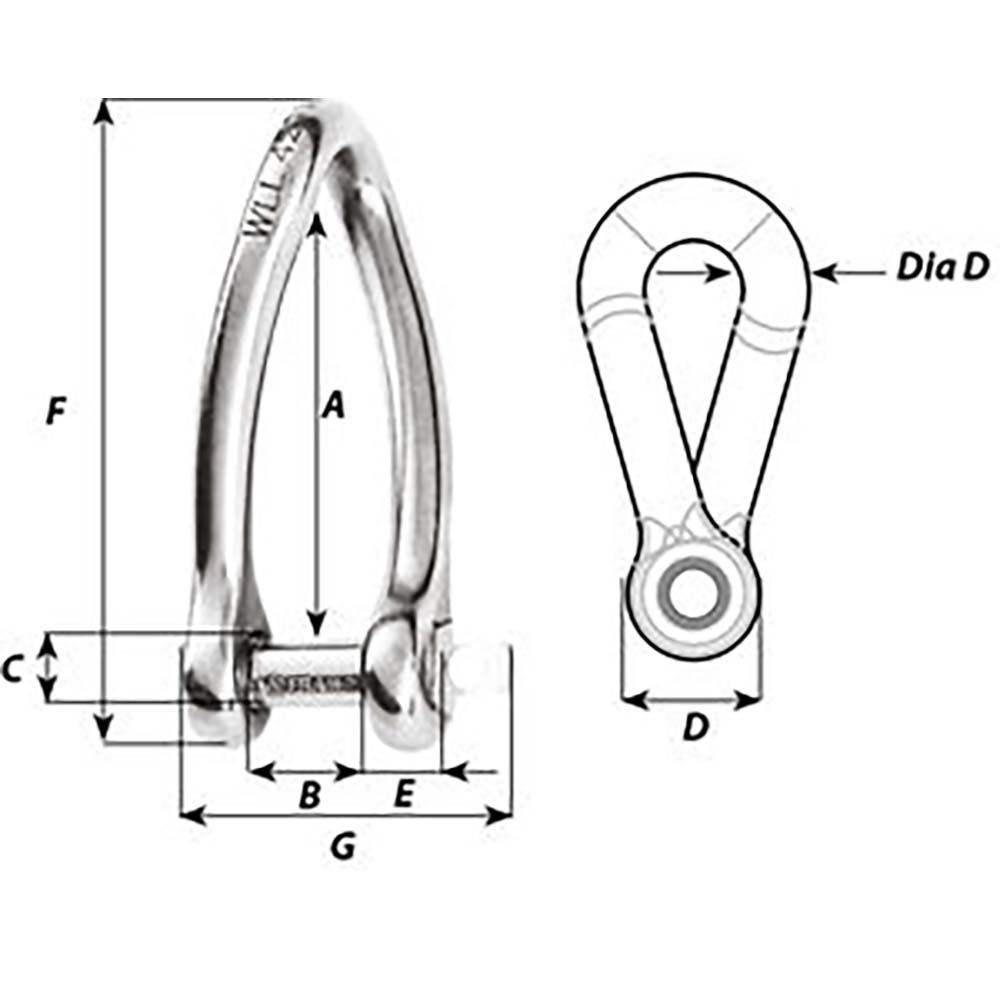

Dimensions (see 2nd image):

• A (inch) 2-21/64"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 45/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• F (inch) 3-5/32"
• G (inch) 1-21/32"

The Wichard Marine 1424W Captive Pin Twisted Shackle is designed for marine applications requiring a 90-degree twist setup. Forged from grade 316L stainless steel, this 8mm (5/16-inch) twisted shackle provides dependable connection performance for attaching unarticulated components, such as a block on a rail, or for use on purchases.

Its captive pin remains connected to the shackle body even when opened, helping prevent the pin from being misplaced during installation or adjustment. The pin locks into one of the body indentations to help resist loosening caused by vibration. A single-handed operating design supports more convenient handling when working with marine hardware.

Key Features:

• Forged 316L stainless steel: Provides a durable marine hardware construction.
• Captive pin design: Keeps the pin connected to the shackle body when opened.
• Locking pin system: The pin engages one of the indentations to help reduce loosening from vibration.
• Single-handed operation: Supports convenient handling and adjustment.
• High load ratings: Rated for a 2,200-pound working load and an 8,150-pound breaking load.
• Twisted configuration: Suited to applications requiring a 90-degree connection angle.

Product Details:

• Brand: Wichard Marine
• Part number: 1424W
• Product type: Captive pin twisted shackle
• Shackle diameter: 8mm (5/16 inch)
• Material: Grade 316L stainless steel
• Working load: 2,200 pounds
• Breaking load: 8,150 pounds
• Weight: 0.198 pounds
• Intended use: Marine applications, including unarticulated attachments and purchases
• Application note: Not suitable for lifting applications

Choose the Wichard Marine 1424W when you need a compact twisted shackle with a captive pin and a 90-degree setup for marine hardware connections.
