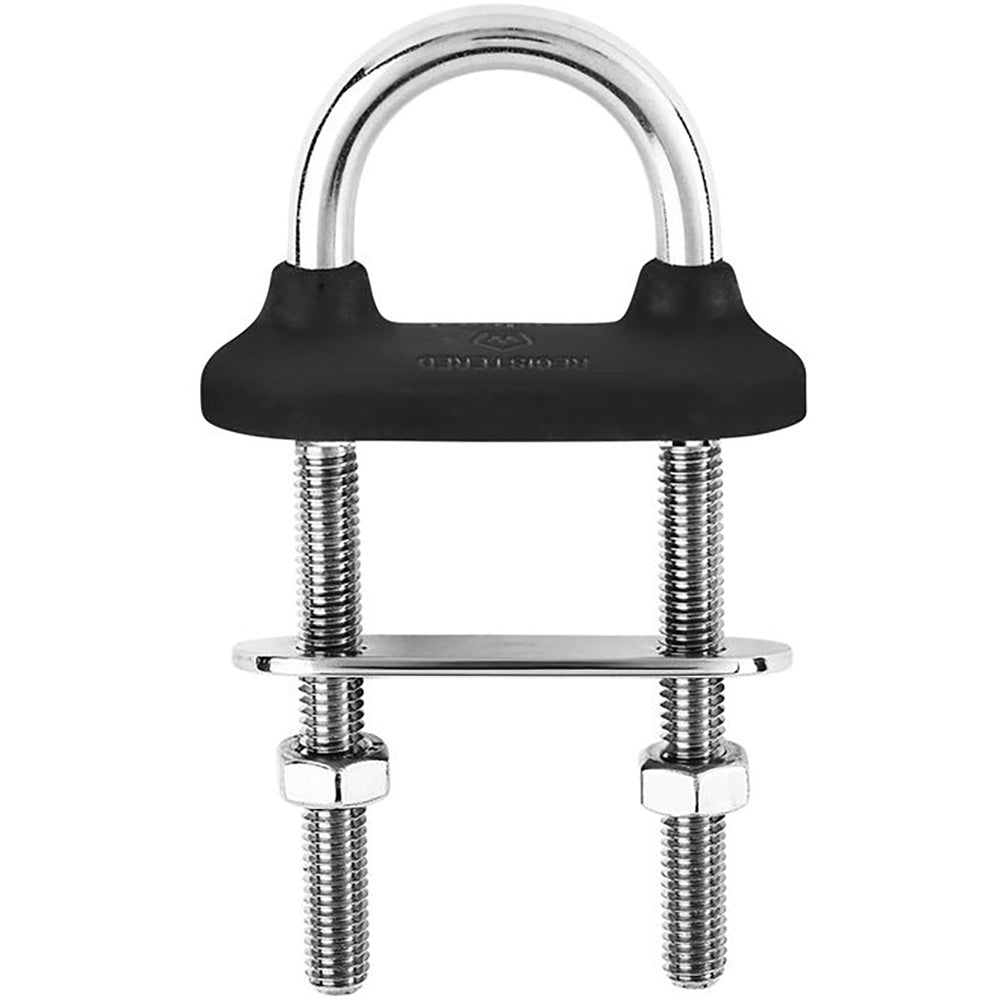

Wichard Marine Black Watertight U-Bolt 10mm Diameter, 90mm Length for Marine and Industrial Use

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.483 / (g) 219

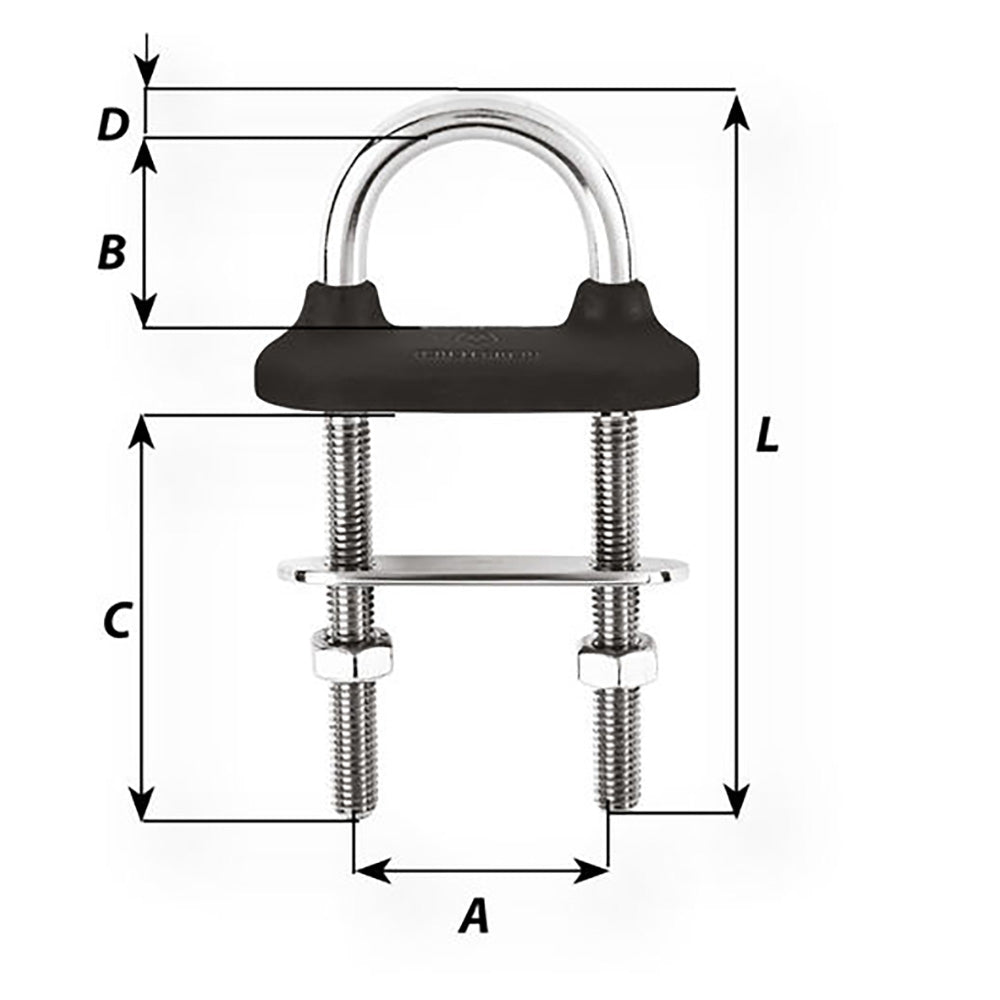

Dimensions:

• Length: (inch) 3 35/64" / (mm) 90
• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 1/32" / (mm) 26
• C: (inch) 1 49/64" / (mm) 45
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Black Watertight U-Bolt, part number 65351W, is crafted from premium 316L stainless steel, ensuring exceptional durability and corrosion resistance in marine environments. With a 10mm diameter and a length of approximately 3.6 inches, this U-bolt is designed for secure fastening in demanding applications such as shrouds, lifelines, and blocks. Its fully drop-forged construction provides outstanding working and breaking loads, making it suitable for both nautical and industrial use. The black rubber collar guarantees complete watertightness, preventing moisture ingress and protecting the integrity of your installation. Installation is straightforward, as it requires no waterproof sealant, and it comes complete with bolts and a counter-plate for ease of use. The maximum tightening torque of 36 Nm ensures a secure fit without risking damage to the bolt or fittings. This U-bolt features a working load limit of approximately 3,600 kg (7,930 lbs) for industrial applications and a working load of about 3,600 kg (7,930 lbs) for nautical purposes, with a break strength of around 7,000 kg (15,430 lbs). Its compact design, with dimensions optimized for various fastening needs, makes it a versatile choice for boat builders, riggers, and industrial technicians. Whether used for securing shrouds or lifelines or in other heavy-duty applications, this U-bolt offers a reliable, corrosion-resistant solution that combines strength, ease of installation, and water-tight integrity. Designed to meet demanding standards, the Wichard Marine Black Watertight U-Bolt is an essential component for professionals requiring dependable fastening hardware in challenging environments.

Features:

• Fully drop-forged construction with high-quality stainless steel for maximum strength

• Outstanding working and breaking loads suitable for rigorous applications

• Complete water-tightness provided by a resistant rubber collar (black color)

• Easy to install without the need for waterproof sealant

• Includes bolts and counter-plate for quick installation

• Maximum tightening torque of 36 Nm ensures secure fastening
