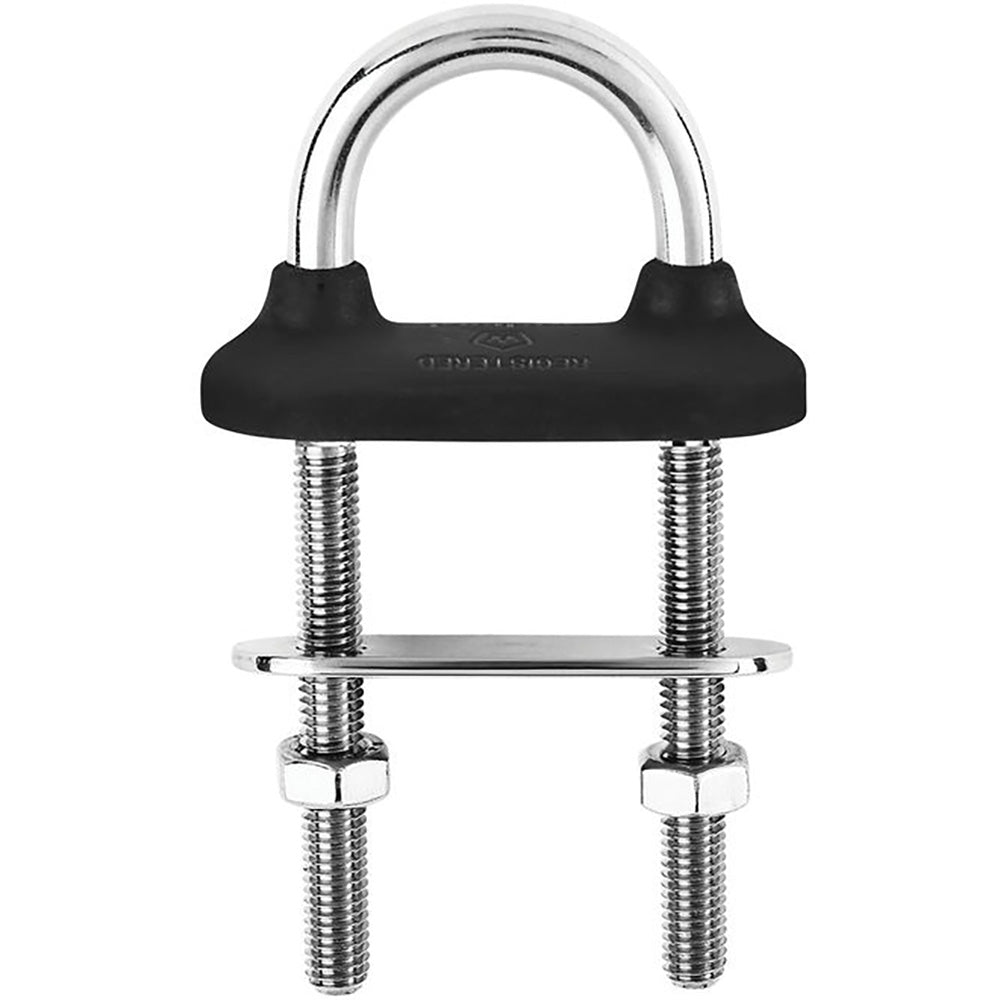

Wichard Marine Black Watertight U-Bolt 12mm Diameter, 15/32 Inch, 110mm Length

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

Features:

• Fully dropforged product with high quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials; 316L stainless steel grade
• Color: Black
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.761 / (g) 345

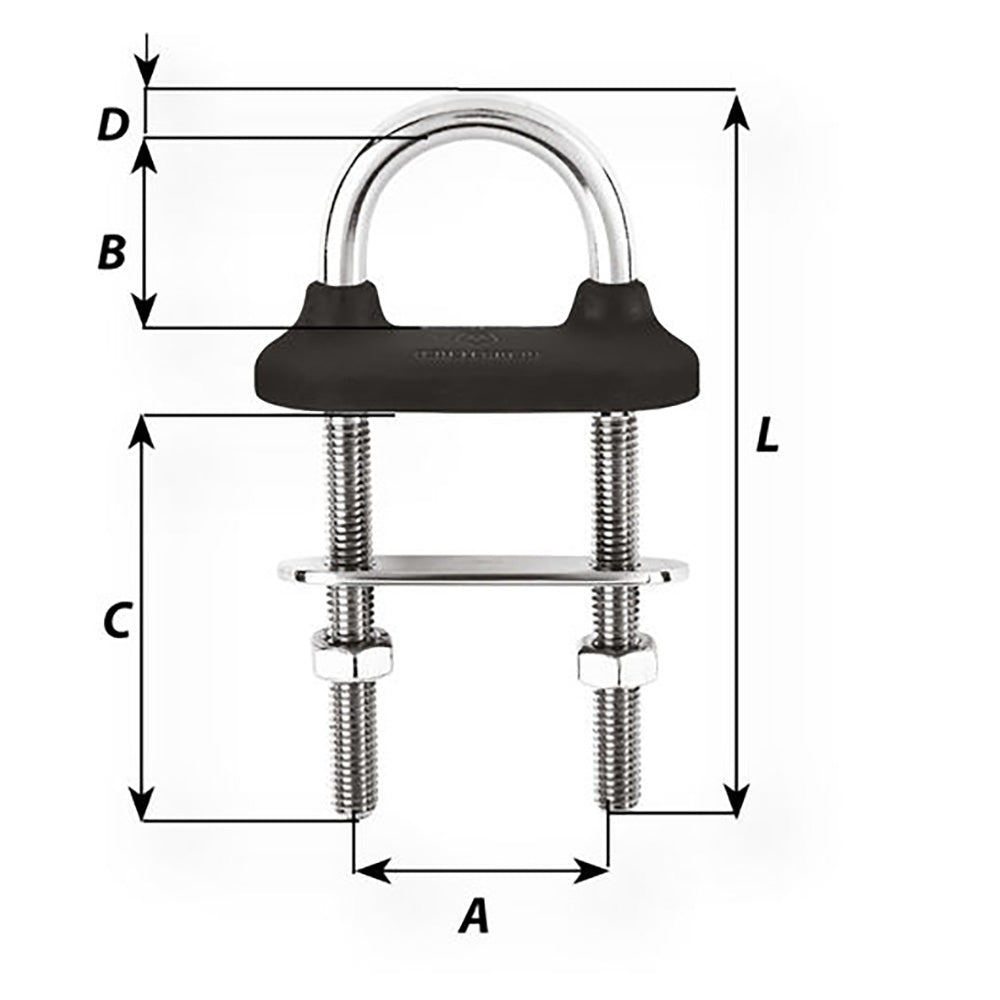

Dimensions:

• Length: (inch) 4 21/64" / (mm) 110
• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 1 31/32" / (mm) 50
• D diameter: (inch) 15/32" / (mm) 12

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Black Watertight U-Bolt (Part Number 65361W) is designed for demanding marine and industrial applications requiring reliable fastening with superior water resistance. Crafted from premium 316L stainless steel, this drop-forged U-bolt offers outstanding strength, durability, and corrosion resistance, making it ideal for use on shrouds, lifelines, and blocks. Its fully water-tight construction, achieved through a resilient rubber collar, ensures a secure connection even in harsh water environments without the need for additional waterproof sealants. The black finish not only adds a sleek aesthetic but also provides extra protection against the elements, extending the lifespan of the hardware.

Installation is straightforward with the included bolts and counter-plate, and the U-bolt is engineered for maximum efficiency, with a recommended tightening torque of up to 60 Nm. Designed to handle heavy loads, it features a working load limit of 6,400 kg (14,100 lbs) and a breaking load of 10,000 kg (22,040 lbs), making it suitable for both lifting and securing applications. Its robust construction ensures safety and reliability, whether used in nautical settings or industrial environments. The U-bolt's dimensions include an overall length of 4 21/64 inches (110 mm), with precise measurements for the diameter, width, and height to facilitate accurate installation and compatibility with various fittings.

Engineered for versatility, this U-bolt is perfect for securing shrouds, lifelines, or other critical components where water-tightness and strength are paramount. Its corrosion-resistant materials and rugged design make it an essential piece for demanding applications, offering peace of mind and long-lasting performance in marine and industrial settings. Trust Wichard Marine to deliver quality hardware that meets the highest standards for safety and durability.

Features:

• Fully dropforged stainless steel construction for maximum strength and durability

• Outstanding working and breaking loads for heavy-duty applications

• Water-tight rubber collar ensures complete water resistance without additional sealants

• Easy to install with included bolts and counter-plate, no waterproof sealant required

• Maximum tightening torque of 60 Nm for secure fastening
