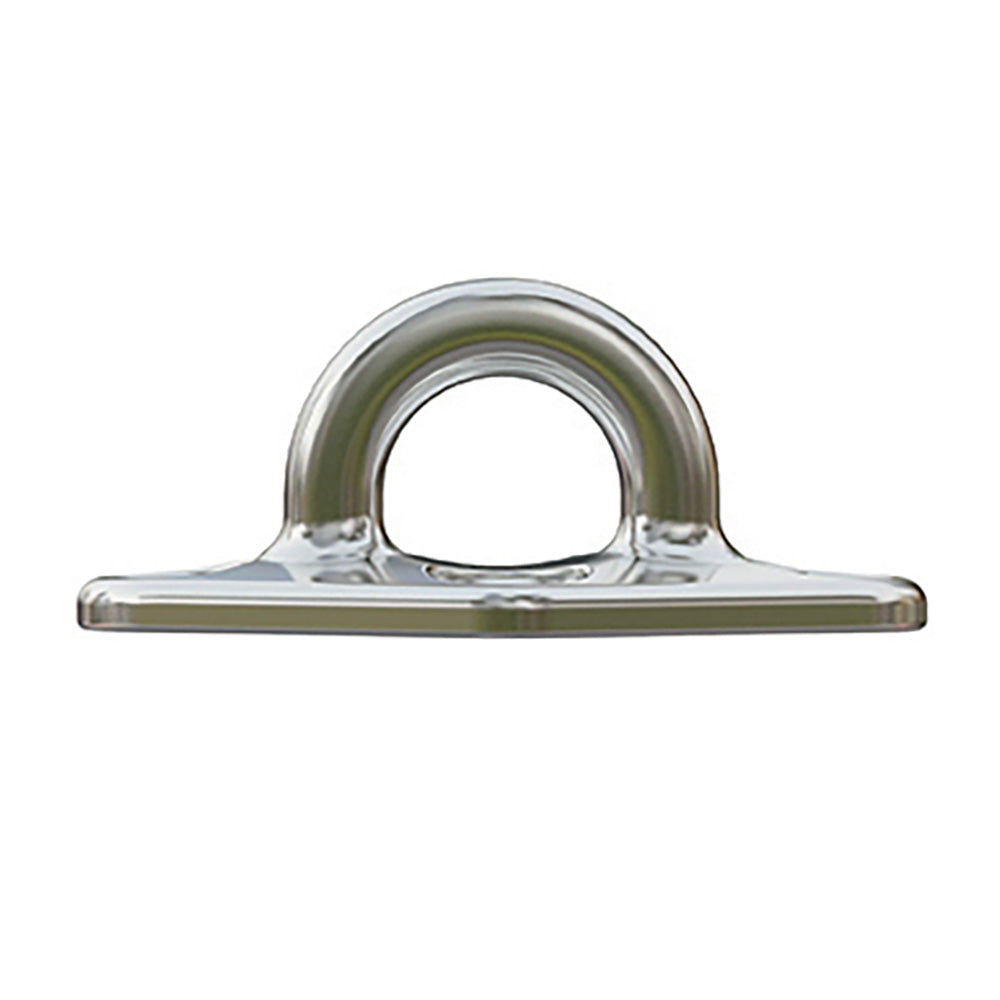

Wichard Marine Diamond Pad Eye - Round, 60mm Length, M5 Screw

Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M5 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 2645.5 / (kg) 1200
• Breaking Load: (lb) 7054.7 / (kg) 3200
• Weight: (lb) 0.13 / (g) 59
• W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
• W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
• W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
• B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
• B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
• B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

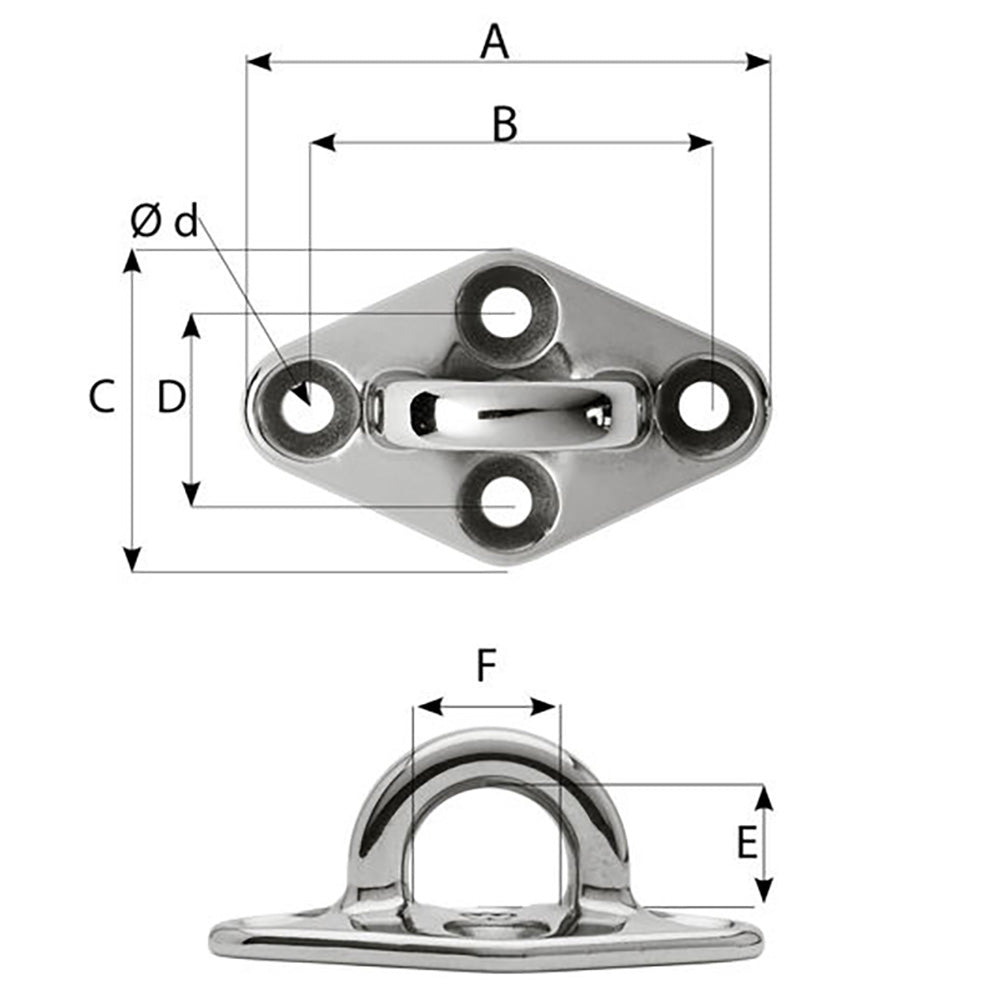

Dimensions:

• A: (inch) 2 23/64" / (mm) 60
• B: (inch) 1 13/16" / (mm) 46
• C: (inch) 1 1/2" / (mm) 38
• D: (inch) 15/16" / (mm) 24
• E: (inch) 37/64" / (mm) 14.5
• F: (inch) 3/4" / (mm) 19

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye is a durable and reliable hardware component designed for demanding marine and industrial applications. Crafted from duplex stainless steel grade, this pad eye offers an optimal balance of mechanical strength and corrosion resistance, ensuring long-lasting performance in harsh environments. Its 60mm (approximately 2-23/64 inches) length and optimized dimensions make it versatile for various fastening needs including mast foot blocks, reefing blocks, and other rigging or securing applications. The pad eye features an M5 screw, providing a secure and stable connection point that withstands significant loads. With a working load limit of up to 1,200 pounds for nautical use and a breaking load of 3,200 pounds, this component is engineered for safety and reliability under heavy loads. Its lightweight design, weighing just 0.13 pounds (59 grams), makes it easy to install without adding unnecessary weight to your setup. The Wichard Marine Diamond Pad Eye is built to meet industry standards, ensuring high performance whether used on boats or in industrial settings. Its corrosion-resistant properties and robust construction make it suitable for both fresh and saltwater environments, providing peace of mind during long-term use. Whether securing sails, rigging, or industrial fixtures, this pad eye delivers strength and durability, backed by tested load capacities and precision manufacturing. Sold as a single unit, it is an essential component for professionals and DIY enthusiasts seeking reliable hardware that combines strength, corrosion resistance, and ease of installation.

Features:

• Mechanical resistance versus corrosion resistance ratio

• Optimized dimensions for versatile applications

• Designed for M5 screw compatibility
