Wichard Marine Diamond Pad Eye - Round with M8 Screw, 98mm Length

Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M8 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 9259.4 / (kg) 4200
• Breaking Load: (lb) 24691.7 / (kg) 11200
• Weight: (lb) 0.551 / (g) 250
• W.L 1 (90 degrees): (lb) 9259.4 / (kg) 4200
• W.L 2 (45 degrees): (lb) 9259.4 / (kg) 4200
• W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
• B.L 1 (90 degrees): (lb) 24691.7 / (kg) 11200
• B.L 2 (45 degrees): (lb) 24691.7 / (kg) 11200
• B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

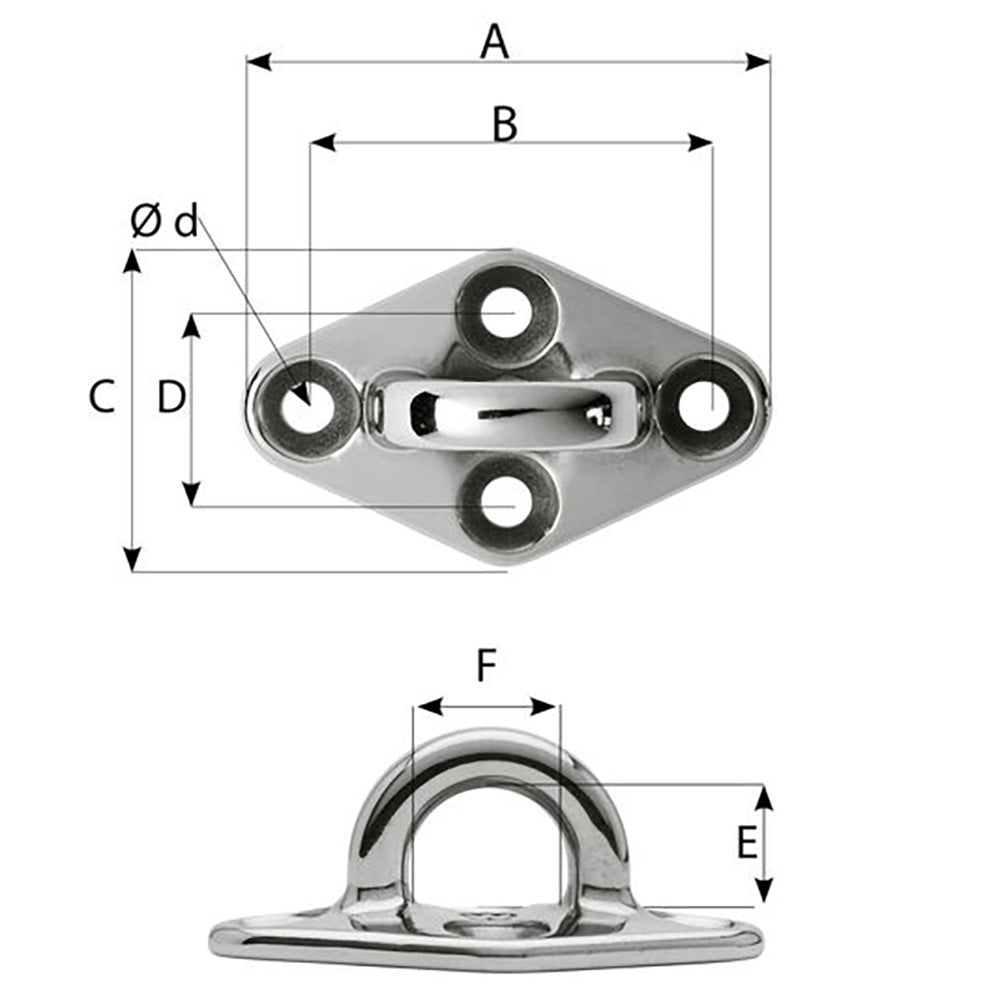

Dimensions:

• A: (inch) 3 55/64" / (mm) 98
• B: (inch) 2 7/8" / (mm) 73
• C: (inch) 2 21/64" / (mm) 59
• D: (inch) 1 3/8" / (mm) 35
• E: (inch) 55/64" / (mm) 22
• F: (inch) 1 1/16" / (mm) 27

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye is a high-performance, corrosion-resistant hardware component designed for demanding nautical and industrial applications. Crafted from duplex stainless steel grade, this pad eye features optimized dimensions for reliable and secure fastening. Its robust construction offers a working load limit of over 4,200 pounds and a breaking load exceeding 11,200 pounds, making it suitable for heavy-duty tasks such as mast foot blocks, reefing blocks, and various fastening needs. The pad eye's compact yet durable design ensures longevity and resistance to harsh marine environments, providing peace of mind during critical operations. Its 98mm length and M8 screw compatibility make installation straightforward and versatile across different rigging and anchoring setups. Whether used for sailing, mooring, or industrial purposes, this pad eye combines strength with corrosion resistance, ensuring safety and durability over time.

Designed for professionals and serious boaters alike, the Wichard Marine Diamond Pad Eye is an essential component for maintaining secure and reliable rigging systems. Its meticulous engineering and high-quality materials deliver consistent performance, even under extreme loads and challenging conditions. Invest in this dependable hardware to enhance your vessel's safety and operational efficiency, knowing it is built to withstand the rigors of maritime life and industrial environments alike.

Sold individually, this pad eye meets the highest standards of quality and safety, providing a trusted solution for your fastening and rigging needs.

Features:

• Corrosion-resistant duplex stainless steel grade for durability in marine environments

• Optimized dimensions for reliable fastening and load distribution

• Compatible with M8 screws for versatile installation

• High working load limit of over 4,200 pounds and breaking load exceeding 11,200 pounds

• Designed for heavy-duty applications such as mast foot blocks and reefing blocks
