Wichard Marine Diamond Pad Eye - Square, 60mm Length with M5 Screw for Marine & Industrial Use

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M5 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 2645.5 / (kg) 1200
• Breaking Load: (lb) 7054.7 / (kg) 3200
• Weight: (lb) 0.13 / (g) 59
• W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
• W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
• W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
• B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
• B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
• B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

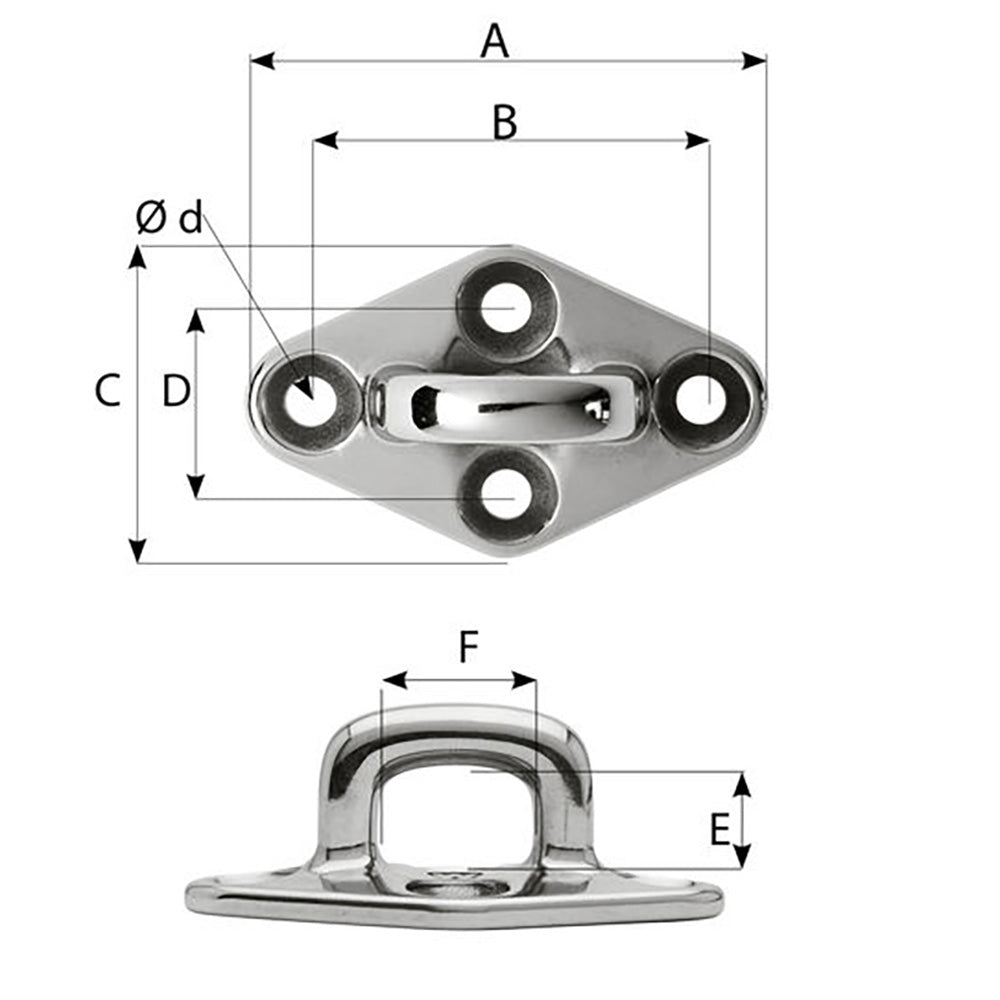

Dimensions:

• A: (inch) 2 23/64" / (mm) 60
• B: (inch) 1 13/16" / (mm) 46
• C: (inch) 1 1/2" / (mm) 38
• D: (inch) 15/16" / (mm) 24
• E: (inch) 15/32" / (mm) 12
• F: (inch) 3/4" / (mm) 19

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye, part number 6654W, is a robust square pad eye designed for demanding marine and industrial applications. Crafted from duplex stainless steel grade, it offers an excellent balance of mechanical strength and corrosion resistance, making it suitable for both harsh marine environments and versatile fastening needs. Its optimized dimensions ensure reliable performance when used with M5 screws, making installation straightforward and secure. This pad eye is ideal for applications such as mast foot blocks, reefing blocks, and various fastenings where strength and durability are essential. The working load limit of 1,200 pounds and breaking load of 3,200 pounds provide a substantial safety margin, ensuring safety and reliability under load. Its lightweight design, weighing only about 2.4 ounces, allows for easy handling without compromising strength or durability. The Wichard Marine Diamond Pad Eye's compact size and high-quality material make it a dependable choice for critical rigging, securing lines, or structural fastening tasks in both recreational and commercial settings. Whether used on sailboats, yachts, or industrial equipment, this pad eye ensures secure attachment points that meet rigorous safety standards. With its precise dimensions and proven load capacities, it offers peace of mind and long-lasting performance for demanding applications. Trust Wichard Marine for quality engineering and durable fastening solutions that stand up to the toughest conditions.

Features:

• Mechanical resistance versus corrosion resistance ratio ensures durability in harsh environments

• Optimized dimensions for easy installation and reliable performance

• Designed for use with M5 screws for secure fastening
