Wichard Marine Diamond Pad Eye - Square, 98mm Length, M8 Screw - Marine Rigging Hardware

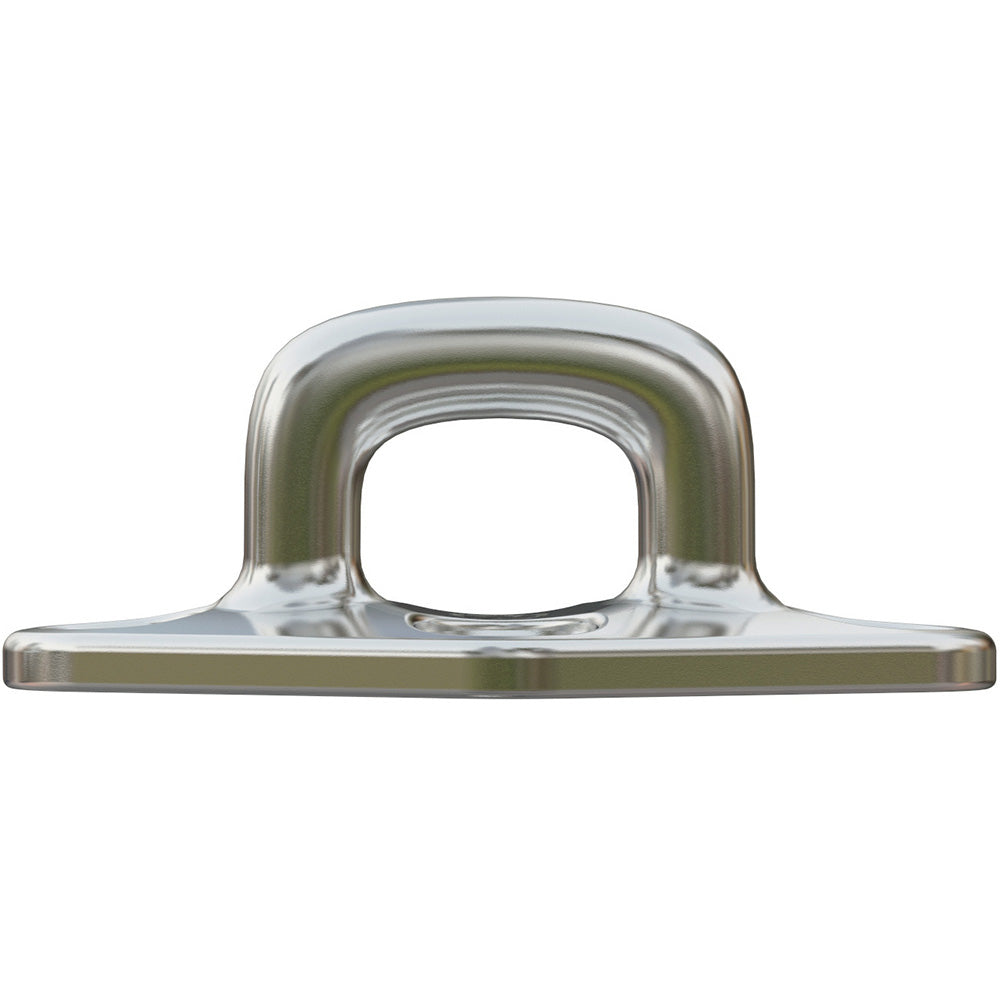

Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M8 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 9479.8 / (kg) 4300
• Breaking Load: (lb) 25573.6 / (kg) 11600
• Weight: (lb) 0.562 / (g) 255
• W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300
• W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300
• W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
• B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600
• B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600
• B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

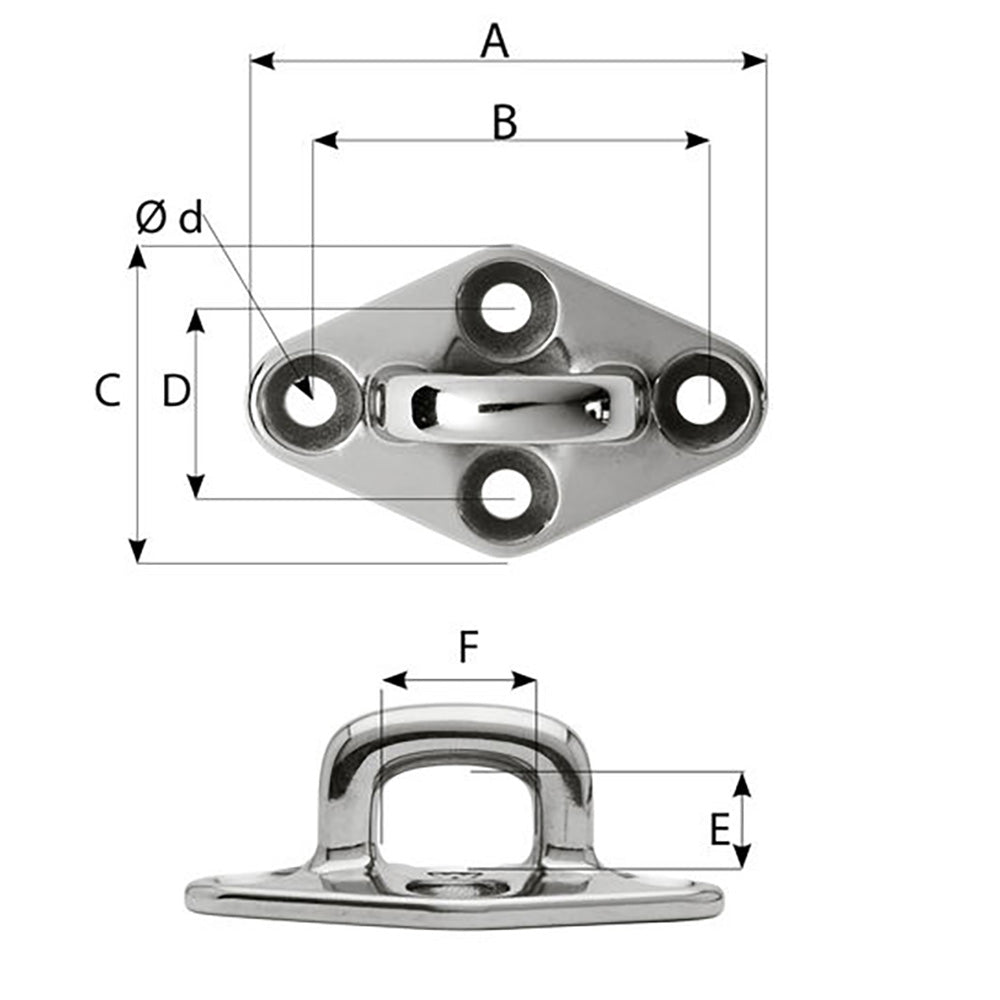

Dimensions:

• A: (inch) 3 55/64" / (mm) 98
• B: (inch) 2 7/8" / (mm) 73
• C: (inch) 2 21/64" / (mm) 59
• D: (inch) 1 3/8" / (mm) 35
• E: (inch) 49/64" / (mm) 19.5
• F: (inch) 1 1/16" / (mm) 27

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye, part number 6656W, offers a robust and reliable solution for marine and industrial applications. Crafted from duplex stainless steel grade, this pad eye provides an excellent balance of mechanical strength and corrosion resistance, ensuring durability in harsh environments. With optimized dimensions for versatile use, the pad eye features a 98mm (3-55/64") length designed for secure fastening with an M8 screw. Its compact yet sturdy design makes it ideal for applications such as mast foot blocks, reefing systems, and various other fastenings on boats and equipment.

Designed to handle significant loads, the Wichard Marine Diamond Pad Eye boasts a working load limit of approximately 4,300 pounds and a breaking load exceeding 11,600 pounds. These specifications ensure safety and reliability under demanding conditions, whether used in nautical or industrial settings. Its lightweight construction, weighing only about 9 ounces, makes installation straightforward without compromising strength. The pad eye's dimensions and robust materials make it an essential component for securing rigging, sails, or heavy-duty attachments.

Ideal for both professional mariners and serious DIY enthusiasts, this pad eye is built to last and withstand the rigors of marine life. Its corrosion-resistant duplex stainless steel construction ensures longevity, even in saltwater environments. The pad eye's optimized size and high load capacity make it a versatile choice for multiple fastening needs, providing peace of mind and enhanced safety on your vessel or project. Whether you are reinforcing existing gear or building new systems, the Wichard Marine Diamond Pad Eye is a dependable, high-performance hardware solution.

Features:

• Mechanical resistance versus corrosion resistance ratio

• Optimized dimensions for versatile use

• Compatible with M8 screw for secure fastening
