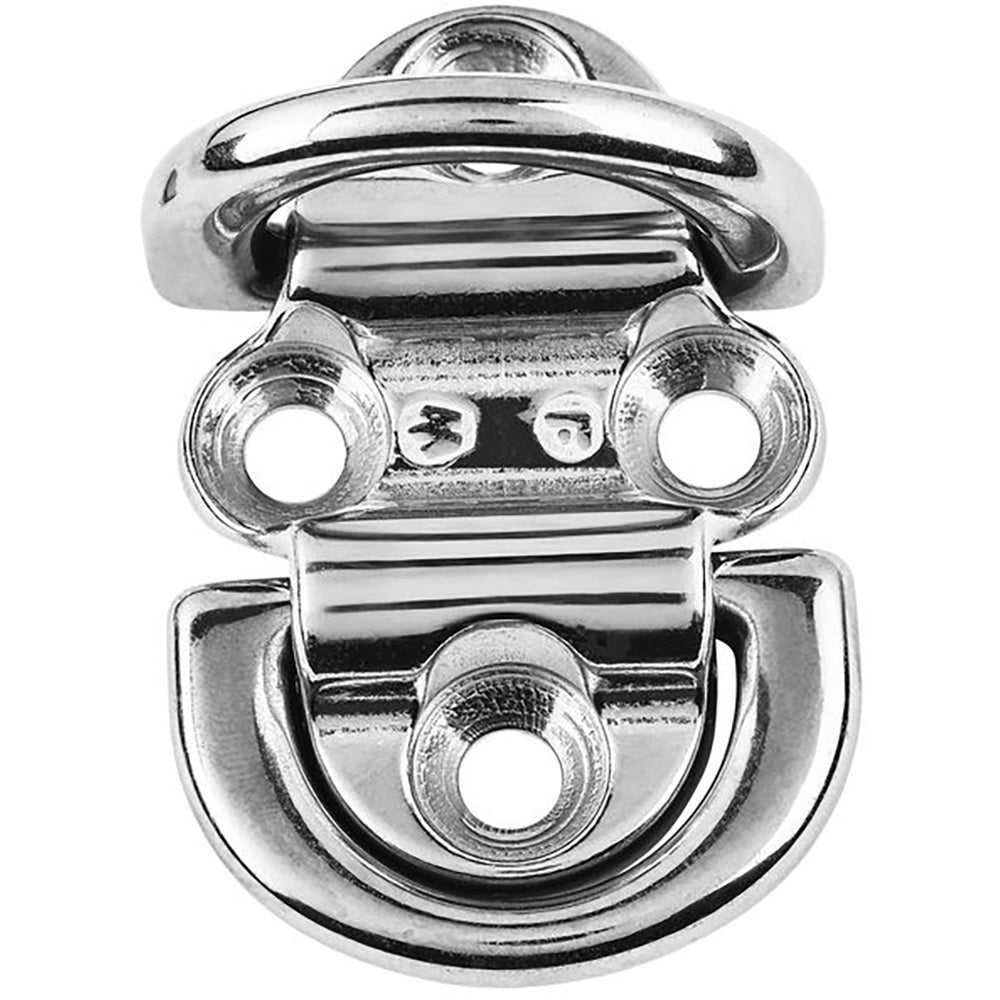

Wichard Marine Double Folding Pad Eye - 10mm Diameter, 25/64 inch

Double Folding Pad Eye - 10mm Diameter - 25/64"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 10050 / (kg) 4560
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.089 / (g) 494

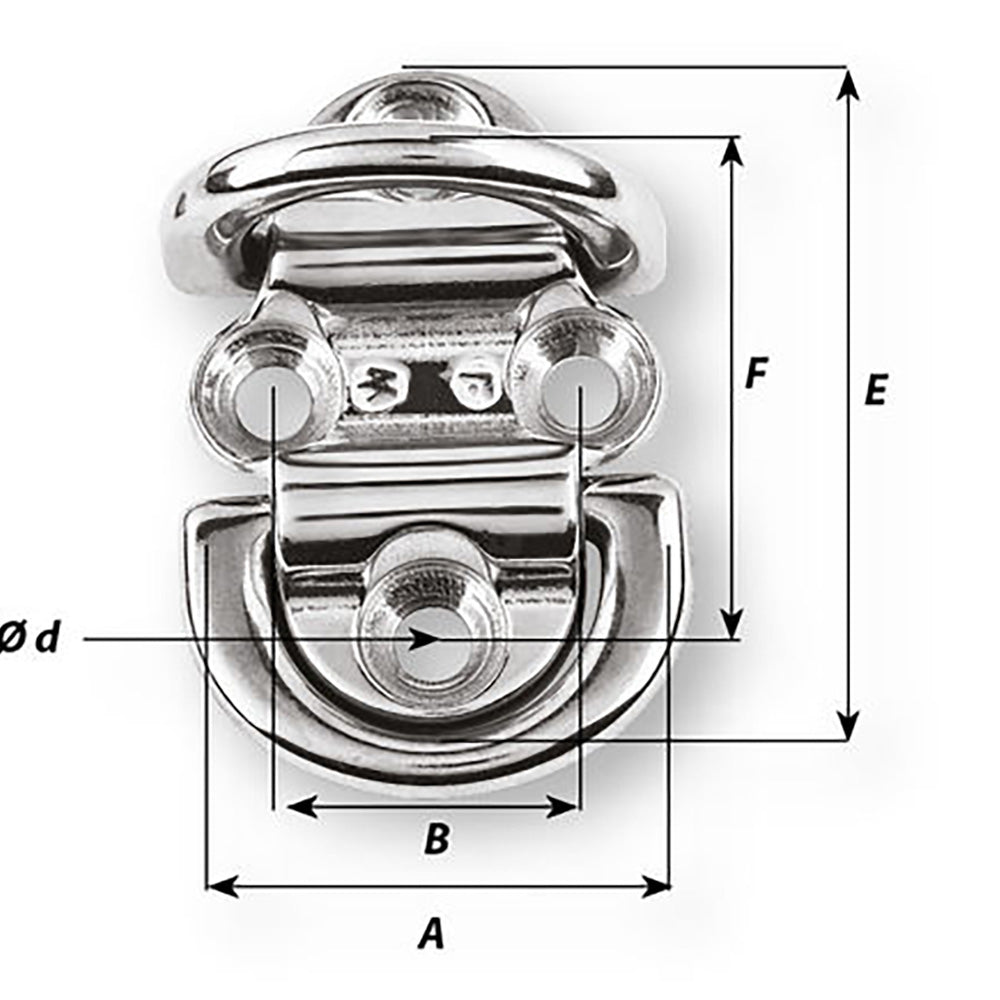

Dimensions:

• A: (inch) 2 61/64" / (mm) 75
• B: (inch) 1 49/64" / (mm) 45
• C: (inch) 29/32" / (mm) 23
• d diameter: (inch) 13/32" / (mm) 10.5
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 4 3/32" / (mm) 104
• F: (inch) 3 5/64" / (mm) 78

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Double Folding Pad Eye, part number 6566W, offers a robust and versatile solution for securing and attaching rigging components on your boat. Made from high-quality 316L stainless steel, this pad eye provides exceptional strength with a working load capacity of over 10,000 pounds and a breaking load approaching 20,000 pounds, ensuring reliable performance under demanding conditions. Its fully drop-forged construction guarantees outstanding durability and load-bearing capacity regardless of the load angle, making it ideal for multiple applications such as stays, blocks, and jib tack points. Its modern, optimized design seamlessly complements contemporary boat aesthetics while providing practical functionality. The foldable feature enhances safety by reducing injury risks during handling or when not in use, and the silicone pad effectively absorbs vibrations and eliminates noise, contributing to a quieter, more comfortable onboard environment.

Features:

• Fully drop forged construction with high working and breaking loads regardless of angle

• Ideal for attachment points including stays, blocks, and jib tack points

• Can accommodate multiple stays for complex rigging setups

• Modern, streamlined design to match contemporary boat aesthetics

• Foldable to minimize injury risk and ease handling

• Silicone pad reduces noise and vibrations for quieter operation
