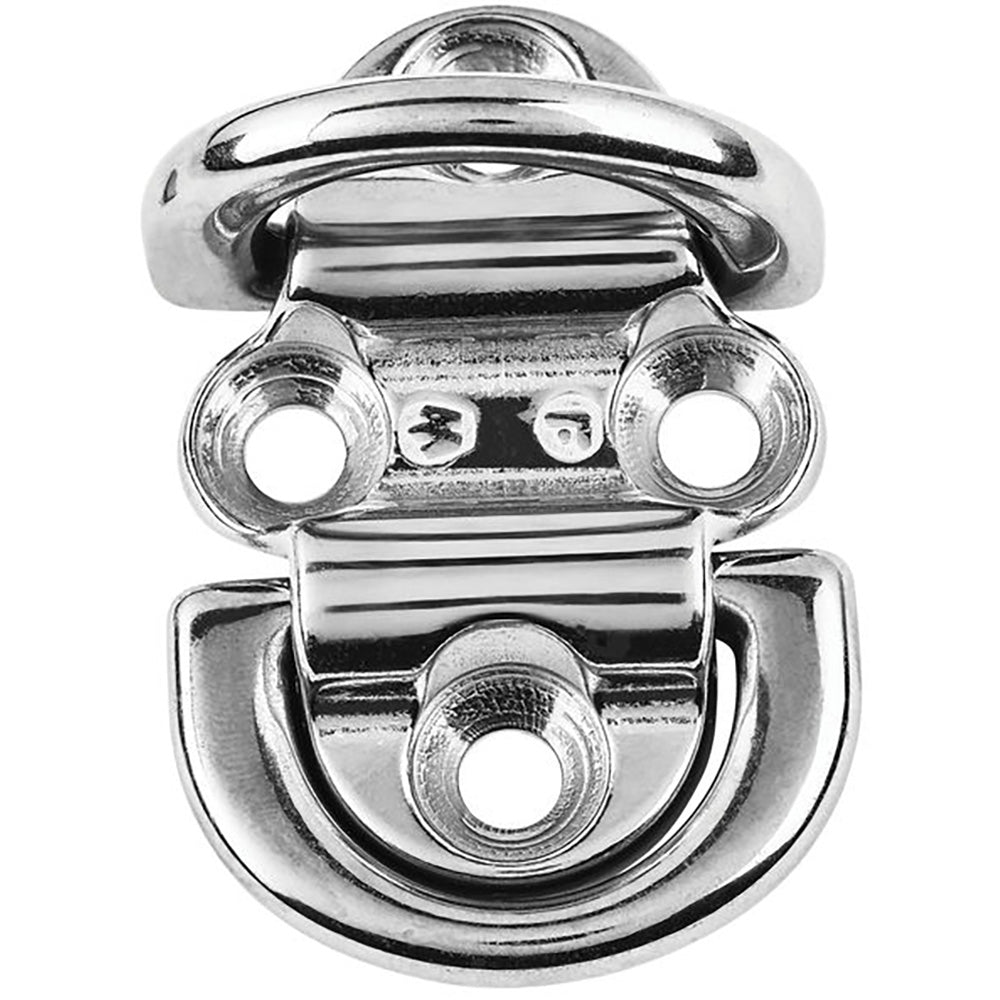

Wichard Marine Double Folding Pad Eye - 6mm Diameter (15/64") for Marine Rigging and Attachments

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• Breaking load; (lb) 5510 / (kg) 2500
• Weight: (lb) 0.278 / (g) 126

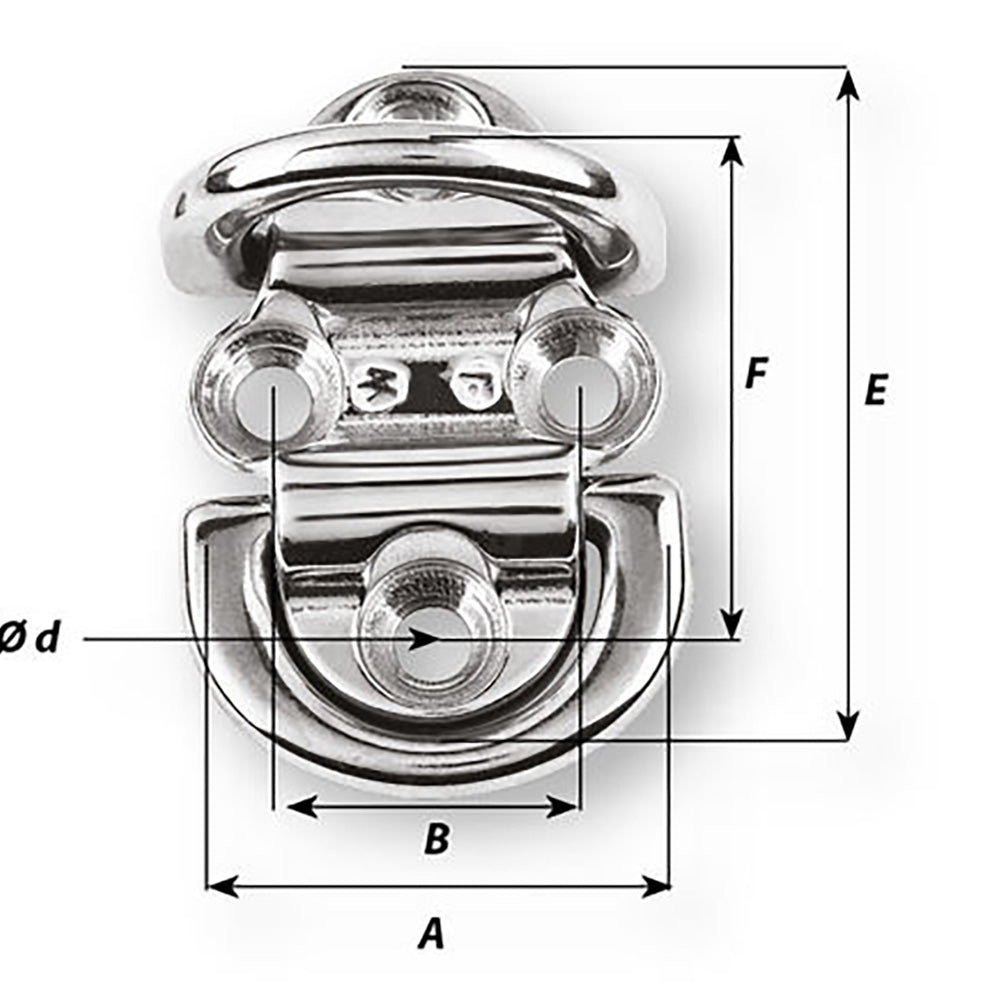

Dimensions:

• A: (inch) 1 49/64" / (mm) 45
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 35/64" / (mm) 14
• d diameter: (inch) 1/4" / (mm) 6.4
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 2 61/64" / (mm) 75
• F: (inch) 2 21/64" / mm) 59

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Double Folding Pad Eye (Part Number 6564W) offers a robust and versatile solution for securing and attaching rigging components on both recreational and professional vessels. Crafted from high-grade 316L stainless steel, this pad eye combines strength with durability, ensuring reliable performance under demanding conditions. Its fully drop-forged construction provides outstanding working and breaking loads regardless of the load angle, making it an essential component for load-bearing applications on boats of all sizes. The modern, optimized design seamlessly integrates with contemporary boat aesthetics, while the folding feature enhances safety by reducing injury risk during handling or storage. A silicone pad inside the pad eye minimizes noise and vibrations, ensuring a quiet and smooth operation in active marine environments. Whether used for stays, blocks, jib tack points, or to attach several shrouds, this pad eye delivers versatile functionality for various fastening and attachment needs.

Designed with ease of installation and safety in mind, the Wichard Marine Double Folding Pad Eye can be folded down to prevent accidental injury, and its durable construction withstands harsh marine conditions. Its impressive working load limit of 1,440 kg (3,170 lbs) and breaking load of 2,500 kg (5,510 lbs) make it suitable for both load-bearing and safety-critical applications. The compact dimensions and lightweight design allow for flexible mounting options without compromising strength. Ideal for sailors, riggers, and boat builders seeking a high-quality, reliable attachment point that combines safety, functionality, and aesthetic appeal in one durable package.

Features:

• Fully drop-forged construction with high working and breaking loads for reliable performance regardless of load angle

• Versatile application for stays, blocks, jib tack points, and multiple shroud attachments

• Modern, sleek design optimized for modern boat aesthetics

• Foldable to minimize injury risk during handling and storage

• Silicone pad reduces noise and vibrations for quieter operation
