Wichard Marine Eye Strap - 4mm Diameter, 5/32 Inch, 30mm Spacing, Part Number 9201W

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

• Fastening applications
• Attachment of straps cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 1430 / (kg) 650
• Weight: (lb) 0.009 / (g) 4

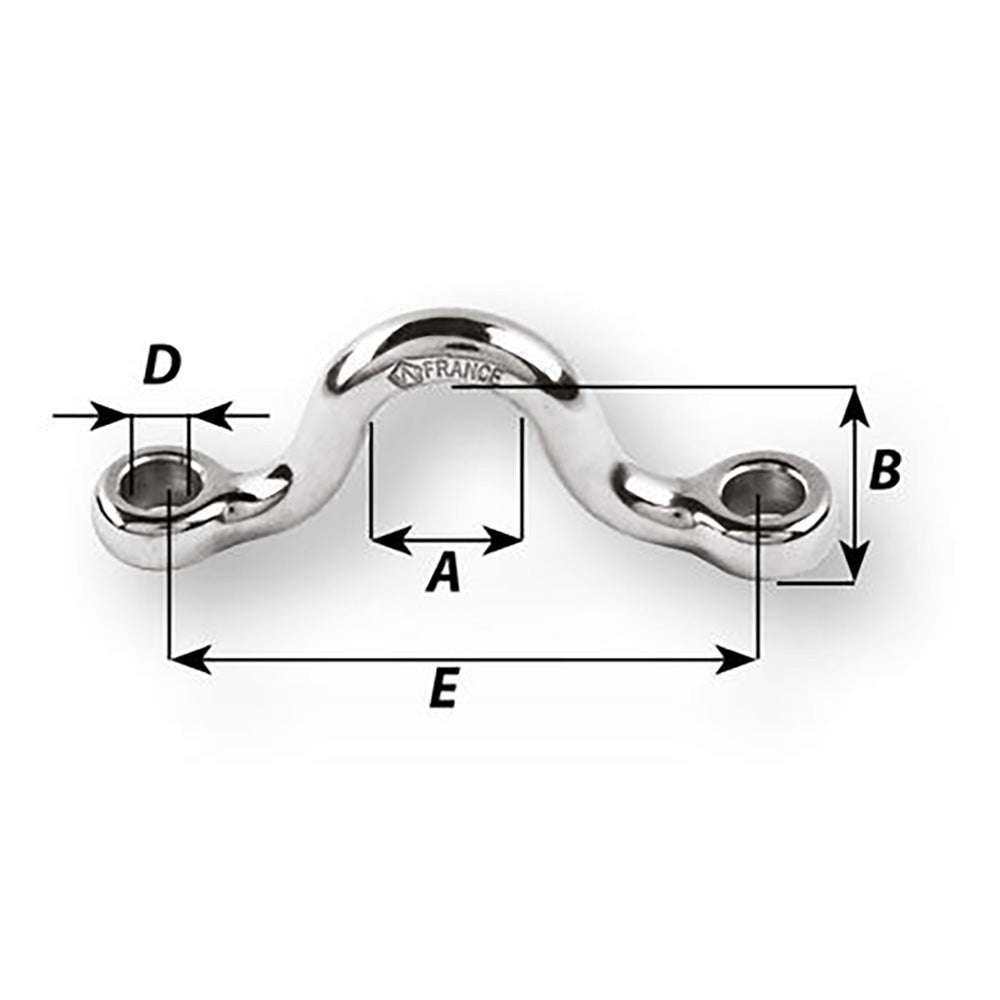

Dimensions:

• A: (inch) 5/16" / (mm) 8
• B: (inch) 7/16" / (mm) 11
• D diameter: (inch) 5/32" / (mm) 4
• E: (inch) 1 17/64" / (mm) 32

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Eye Strap, part number 9201W, is crafted from high-quality 316L stainless steel, ensuring exceptional durability and corrosion resistance ideal for demanding marine and industrial applications. Designed with a 4mm diameter and 5/32 inch (4mm) D diameter, this eye strap features a 30mm (1-17/64 inch) spacing, making it a versatile component for fastening and attachment needs. Its drop-forged construction guarantees outstanding strength, with a breaking load of 1,430 pounds (650 kg), providing reliable performance under heavy loads. The rounded shape of the eye strap minimizes wear on connected components such as straps and ropes, extending the lifespan of your equipment and ensuring secure connections over time.

Features:

• Complete range of drop-forged saddles with high-quality 316L stainless steel for durability and corrosion resistance

• Outstanding strength with a breaking load of 1,430 pounds (650 kg)

• Round shape design reduces wear on connected components like straps and ropes
