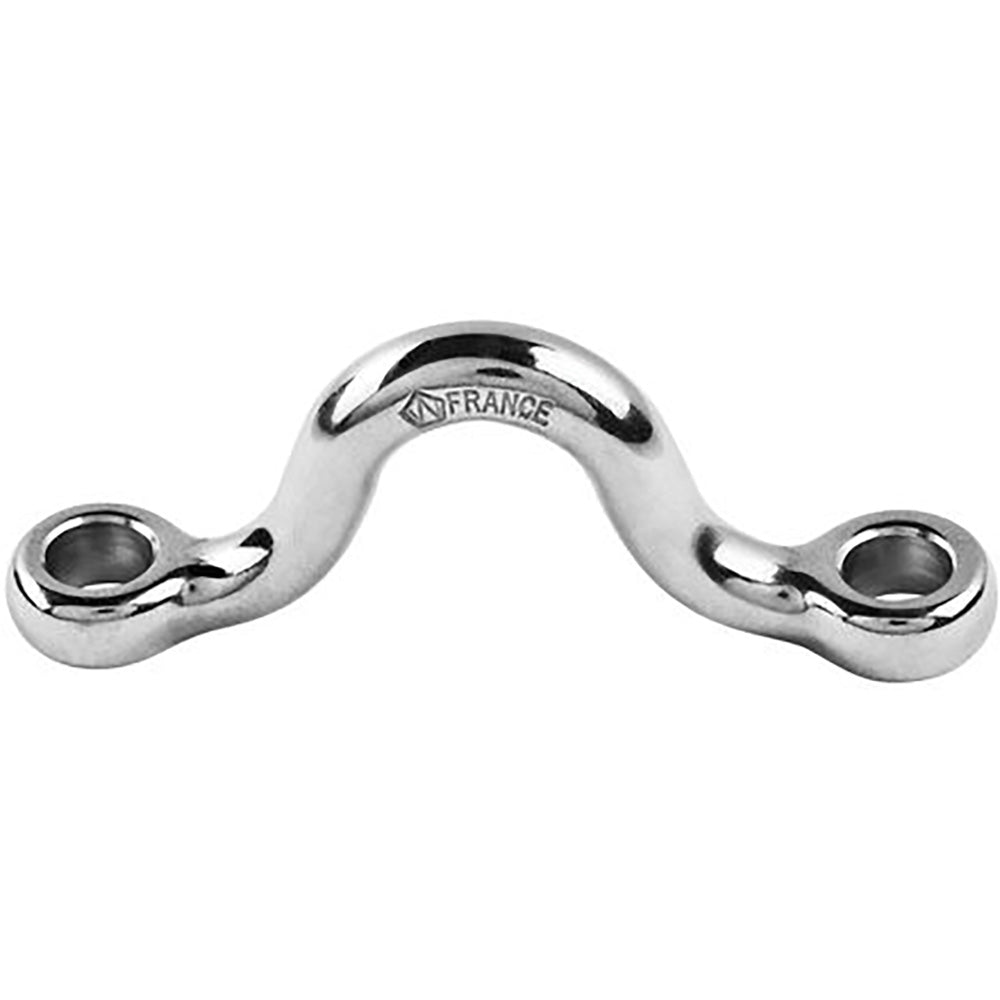

Wichard Marine Eye Strap - 5mm Diameter, 13/64" - 37.5mm Spacing, 1-15/32" Length

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

• Fastening applications
• Attachment of straps cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 3960 / (kg) 1800
• Weight: (lb) 0.02 / (g) 9

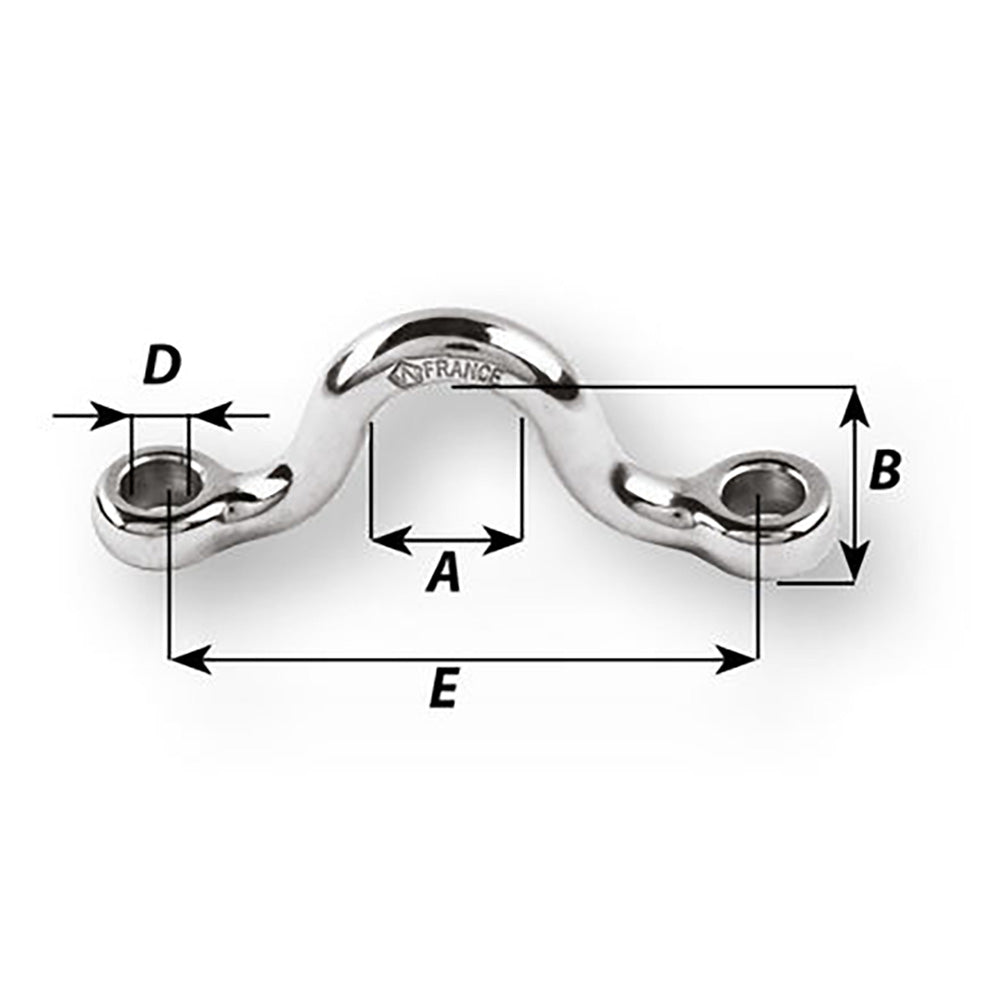

Dimensions:

• A: (inch) 25/64" / (mm) 10
• B: (inch) 35/64" / (mm) 14
• D diameter: (inch) 13/64" / (mm) 5
• E: (inch) 1 15/32" / (mm) 37.5

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Eye Strap Part Number 9202W is a robust and versatile hardware component designed for demanding fastening and attachment applications. Crafted from high-quality 316L stainless steel, this eye strap features a 5mm diameter and a 13/64" (5mm) D diameter, ensuring exceptional strength and durability for marine and industrial environments. With a length of approximately 1-3/8" (37.5mm), it provides ample space for secure strap, cordage, or rope attachment, making it ideal for a variety of rigging and load-bearing tasks. The round shape of the eye reduces wear on connected components, prolonging the lifespan of straps and ropes while maintaining optimal performance under load. Thanks to its high-grade stainless steel construction, this eye strap offers outstanding corrosion resistance and can withstand significant tensile forces, making it suitable for both marine and industrial settings. The breaking load of approximately 3,960 pounds (1,800 kg) ensures reliable performance for critical applications, and the component’s lightweight design—just 0.02 pounds (9 grams)—facilitates ease of handling and installation. The Wichard Marine Eye Strap is sold individually, offering flexibility for various project needs. It is primarily intended for nautical use, with a working load limit (WLL) calculated at one-fifth of the breaking load to guarantee safety and reliability in industrial applications. Whether securing rigging, attaching straps, or managing cordage, this eye strap combines strength, durability, and precision engineering to meet the demands of professional sailors, riggers, and industrial workers alike.

Features:

• Complete range of drop-forged saddles made from high-quality stainless steel (316L)

• Outstanding strength with a breaking load of approximately 3,960 pounds (1,800 kg)

• Round shape design reduces wear on connected components such as straps and ropes
