Wichard Marine HR D Shackle 11204W, 15/64-Inch Diameter, 17-4 PH Stainless Steel

HR D Shackle - Diameter 15/64"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Working load (lb) 2290
• WLL (lb) 1010
• Breaking load (lb) 5070
• Weight (lb) 0.053

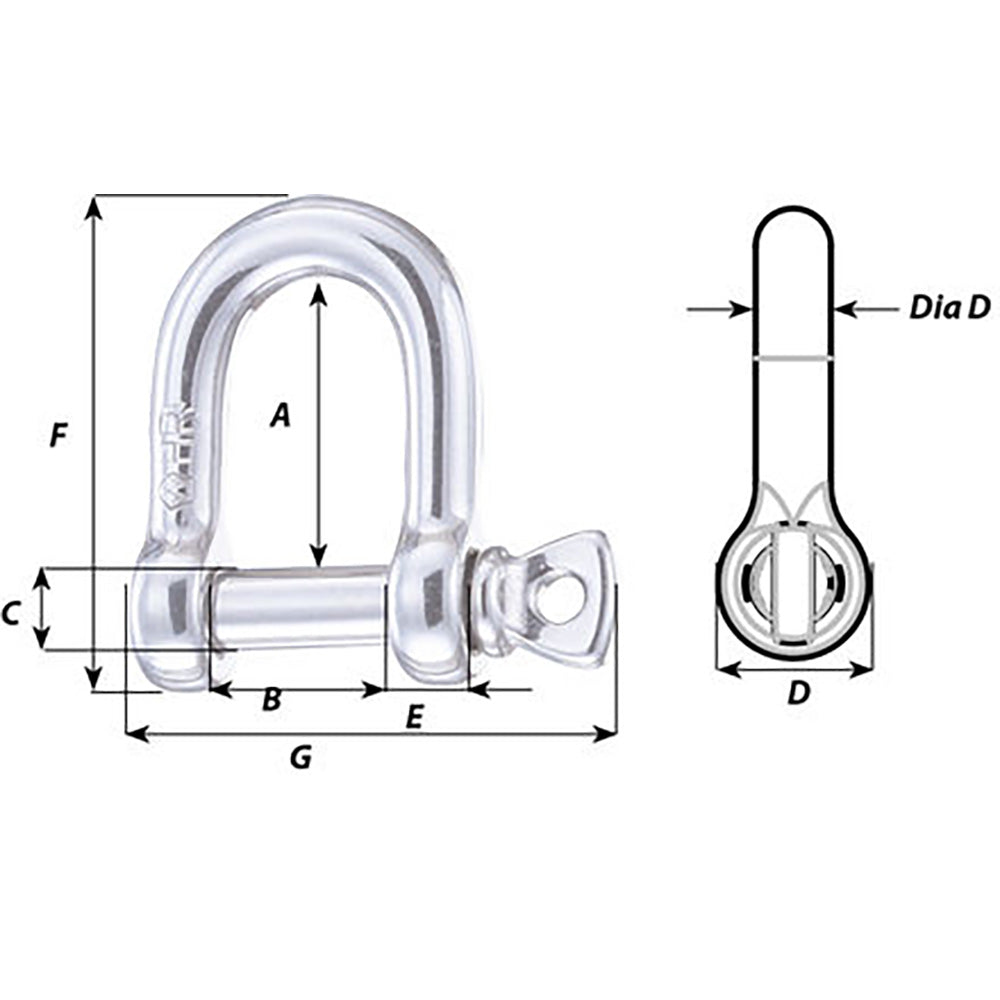

• A (inch) 25/32"
• B (inch) 15/32"
• C (inch) 15/64"
• D (inch) 5/8"
• D diameter (inch) 15/64"
• E (inch) 9/32"
• F (inch) 113/16"
• G (inch) 1 13/16"

The Wichard Marine HR D Shackle 11204W is a forged high-resistance stainless steel shackle designed for industrial lifting and attachment applications that require high working and breaking loads. Made from HR 17-4 PH stainless steel, this D shackle provides greater resistance than standard 316L stainless steel shackles for demanding applications involving blocks, heads, and other compatible attachment points.

With a working load of 2,290 pounds, a working load limit of 1,010 pounds, and a breaking load of 5,070 pounds, the Wichard Marine HR D Shackle is suited to industrial applications such as lifting. It is not intended for mooring applications. The shackle includes CE marking and a batch number for product identification and traceability.

Key Features:

• Feature: Forged D shackle made from high-resistance 17-4 PH stainless steel for demanding industrial use
• Feature: 15/64-inch diameter for compatible attachment and rigging applications
• Feature: Working load of 2,290 pounds and breaking load of 5,070 pounds
• Feature: Working load limit of 1,010 pounds for industrial lifting applications
• Feature: CE marking and batch number included
• Feature: Suitable for high-load attachment applications involving blocks and heads; do not use for mooring

Product Details:

• Brand: Wichard Marine
• Part Number: 11204W
• Product Type: HR D shackle
• Material: HR 17-4 PH stainless steel
• Diameter: 15/64 inch
• Working Load: 2,290 pounds
• Working Load Limit: 1,010 pounds
• Breaking Load: 5,070 pounds
• Weight: 0.053 pound
• Application: Industrial lifting and high-load attachment applications
• Use restriction: Do not use for mooring applications

Choose the Wichard Marine HR D Shackle 11204W when your industrial rigging application calls for a forged 17-4 PH stainless steel D shackle with clearly defined load ratings.
