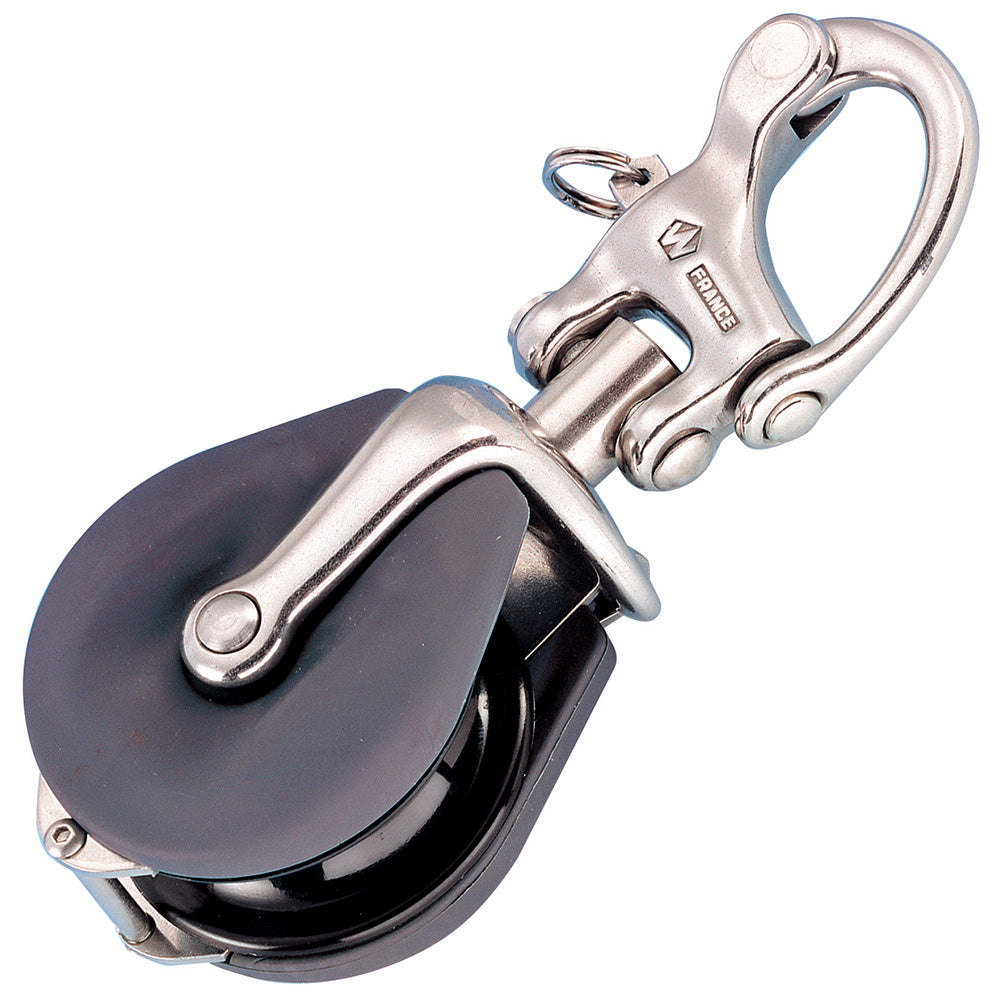

Wichard Marine Snatch Block with Snap Shackle for 12mm Rope – Model 34500W

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

• Free rotation thanks to snap shackle
• Very strong closing system
• Easy opening by simply pulling on the plunger pin
• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets
• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks
• Composite sheave

Specifications:

• Rope size: (inch) 15/32" / (mm) 12
• Length: (inch) 5 45/64" / (mm) 145
• Width: (inch) 2 21/64" / (mm) 59
• Thickness: (inch) 1 11/16" / (mm) 43
• Working Load: (lb) 1580 / (kg) 720
• Breaking Load: (lb) 2860 / (kg) 1300
• Weight: (lb) 0.56 / (g) 254

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Snatch Block with Snap Shackle (Part Number 34500W) is a versatile and reliable equipment essential for nautical applications and industrial uses. Designed to accommodate ropes up to 12mm (15/32 inch), this snatch block features a durable forged stainless steel arm, elastomer molded cheeks, and a lightweight composite sheave, ensuring long-lasting performance in demanding environments. The snap shackle allows for free rotation, facilitating smooth operation and quick adjustments during sailing or rigging tasks. Its robust closing system provides added security, while the easy-to-pull plunger pin simplifies opening and closing operations, saving time and effort during critical maneuvers. The elastomer molded cheeks are shock and scratch-resistant, safeguarding the integrity of the block against harsh conditions. With a working load capacity of 1,580 pounds and a breaking load of 2,860 pounds, this device offers dependable strength for various applications such as changing sheets or serving as a spinnaker sheet deflector block. Its compact size and lightweight design make it easy to handle and install without compromising strength or durability. Whether for marine or industrial use, the Wichard Marine Snatch Block with Snap Shackle combines innovative features and high-quality materials to meet the demands of professional sailors and industrial operators alike. This product is sold individually and is built to provide a secure, efficient, and corrosion-resistant solution for your rigging needs.

Features:

• Free rotation facilitated by snap shackle for smooth operation

• High-strength closing system for secure attachment

• Easy opening mechanism with a simple pull on the plunger pin

• Shock and scratch-resistant elastomer molded cheeks for durability
