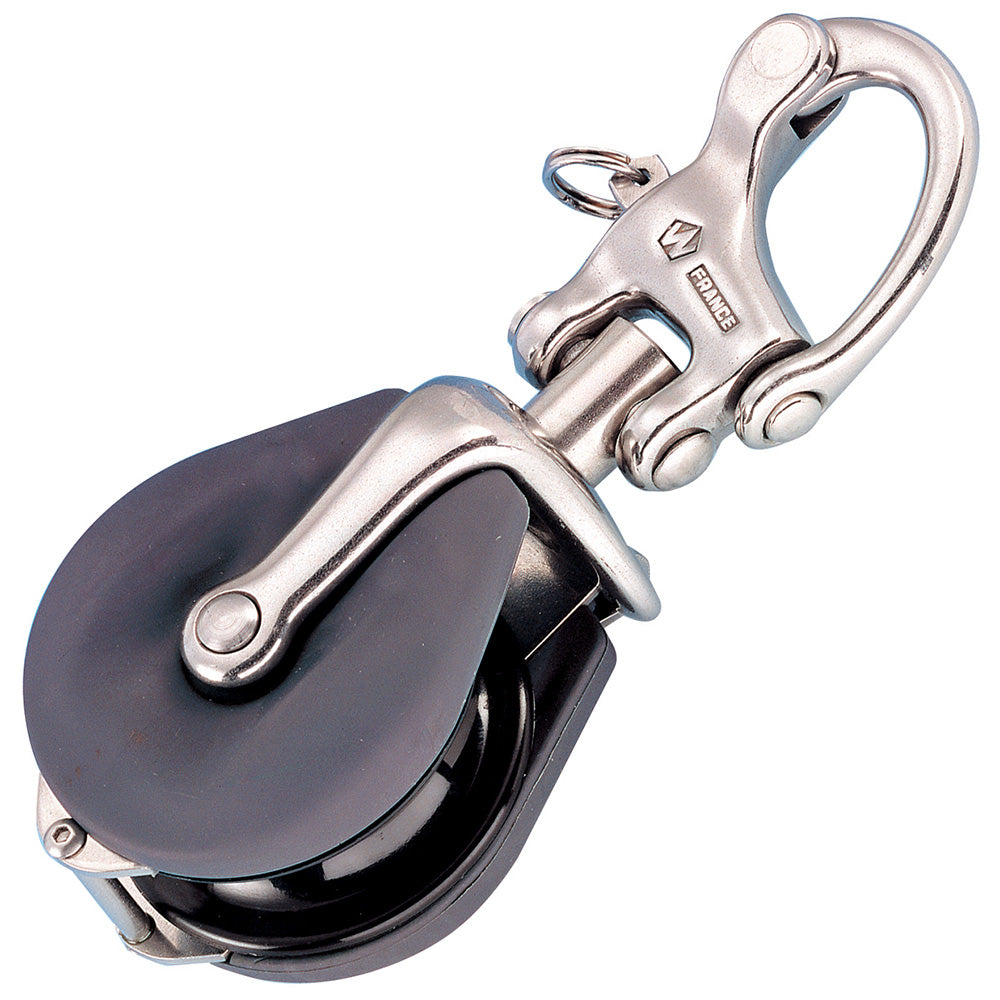

Wichard Marine Snatch Block with Snap Shackle for 18mm Ropes

Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")

Features:

• Free rotation thanks to snap shackle
• Very strong closing system
• Easy opening by simply pulling on the plunger pin
• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets
• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks
• Composite sheave

Specifications:

• Rope size: (inch) 23/32" / (mm) 18
• Length: (inch) 6 7/64" / (mm) 155
• Width: (inch) 2 21/64" / (mm) 59
• Thickness: (inch) 1 59/64" / (mm) 49
• Working Load: (lb) 2640 / (kg) 1200
• Breaking Load: (lb) 5510 / (kg) 2500
• Weight: (lb) 0.913 / (g) 414

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Snatch Block with Snap Shackle is a reliable and versatile pulley designed for demanding nautical and industrial applications. Crafted with a forged stainless steel arm and elastomer molded cheeks, this snatch block offers exceptional strength and durability, making it suitable for handling ropes up to 18mm (23/32 inch) in diameter. Its innovative snap shackle allows for free rotation, facilitating smooth operation and quick adjustments during sailing or rigging tasks. The easy-to-open plunger pin ensures swift disassembly when needed, streamlining maintenance and setup. Built with a composite sheave, this pulley provides a lightweight yet robust solution for various load-bearing tasks, including changing sheets and spinnaker sheet deflector blocks. The unit's design incorporates shock and scratch-resistant features, ensuring long-lasting performance even in harsh marine environments. With a working load capacity of 1,200 kg (2,640 lbs) and a breaking load of 2,500 kg (5,510 lbs), the Wichard Snatch Block is engineered for safety and reliability. Its compact dimensions make it easy to handle and install, providing an efficient solution for both recreational and professional sailors. Whether you're upgrading your boat's rigging or working on industrial lifting tasks, this snatch block delivers exceptional strength, ease of use, and durability, making it an essential component for demanding applications.

Features:

• Free rotation thanks to snap shackle

• Very strong closing system

• Easy opening by simply pulling on the plunger pin

• Shock and scratch-resistant thanks to the elastomer molded cheeks
