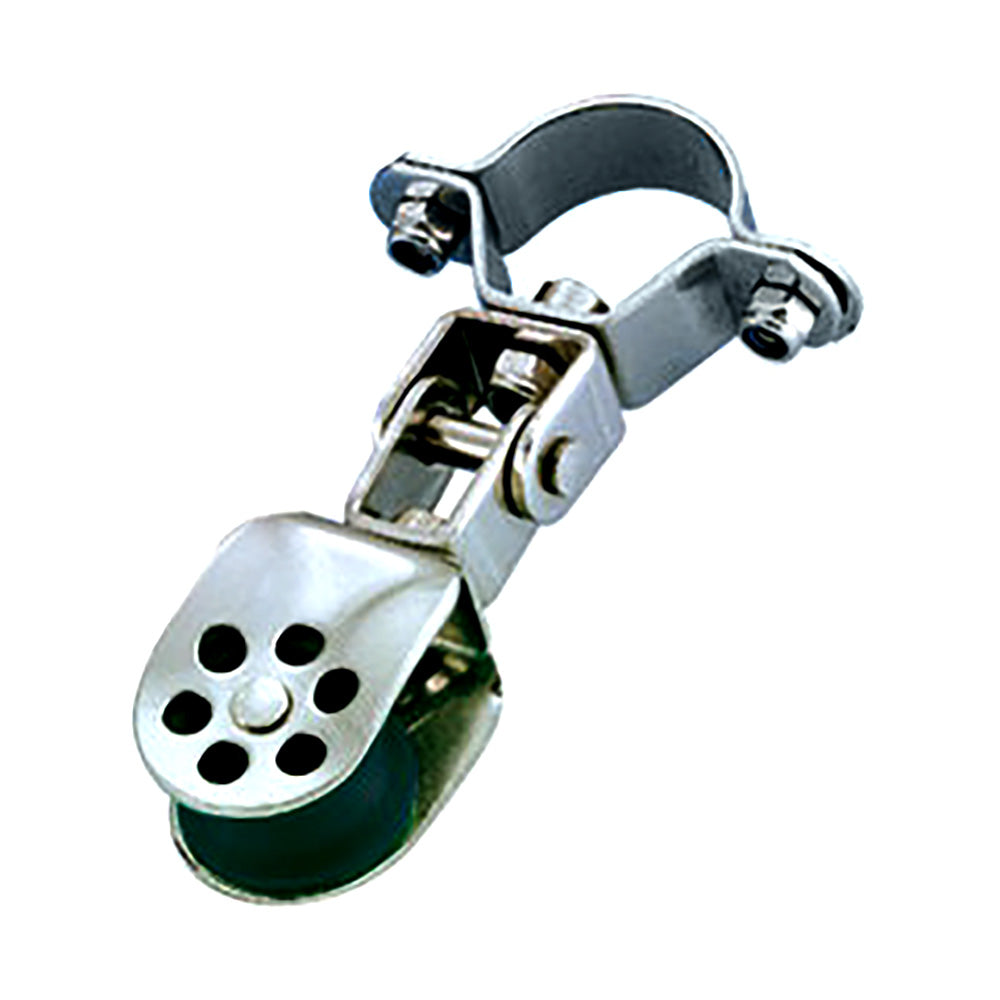

Wichard Marine Stainless Steel Single Block with 25mm Sheave Diameter for 25mm Stanchion Pivoting

Stainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting

• A single block intended for use on a dinghy. The block is light, reliable, and has good performance.

Applications:

• For stanchion applications - furling system line

Specifications:

• Materials Composite sheave and 316L stainless steel grade cheeks
• Rope size: (inch) 5/16"-25/64" / (mm) 8-10
• Length: (inch) 3 47/64" / (mm) 95
• Width: (inch) 2 3/32" / (mm) 53
• Thickness: (inch) 53/64" / (mm) 21
• Sheave Diameter: (inch) 63/64" / (mm) 25
• Working load: (lb) 610 / (mm) 280
• Breaking load: (lb) 880 / (mm) 400
• Weight: (lb) 0.154 / (g) 70

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Stainless Steel Single Block is a high-performance pully designed specifically for nautical applications, offering durability and reliable operation in demanding environments. Crafted with a composite sheave and 316L stainless steel cheeks, this block ensures resistance to corrosion and wear, making it ideal for use on dinghies and other small vessels. Its lightweight construction, weighing only about 5 ounces, allows for easy handling and installation without sacrificing strength or performance. The sheave measures 25mm in diameter, compatible with 5/16 to 25/64 inch (8-10 mm) ropes, making it versatile for various line sizes used in furling systems and stanchion applications. The overall length of approximately 3.7 inches and width of just over 2 inches provide a compact, space-efficient design that
