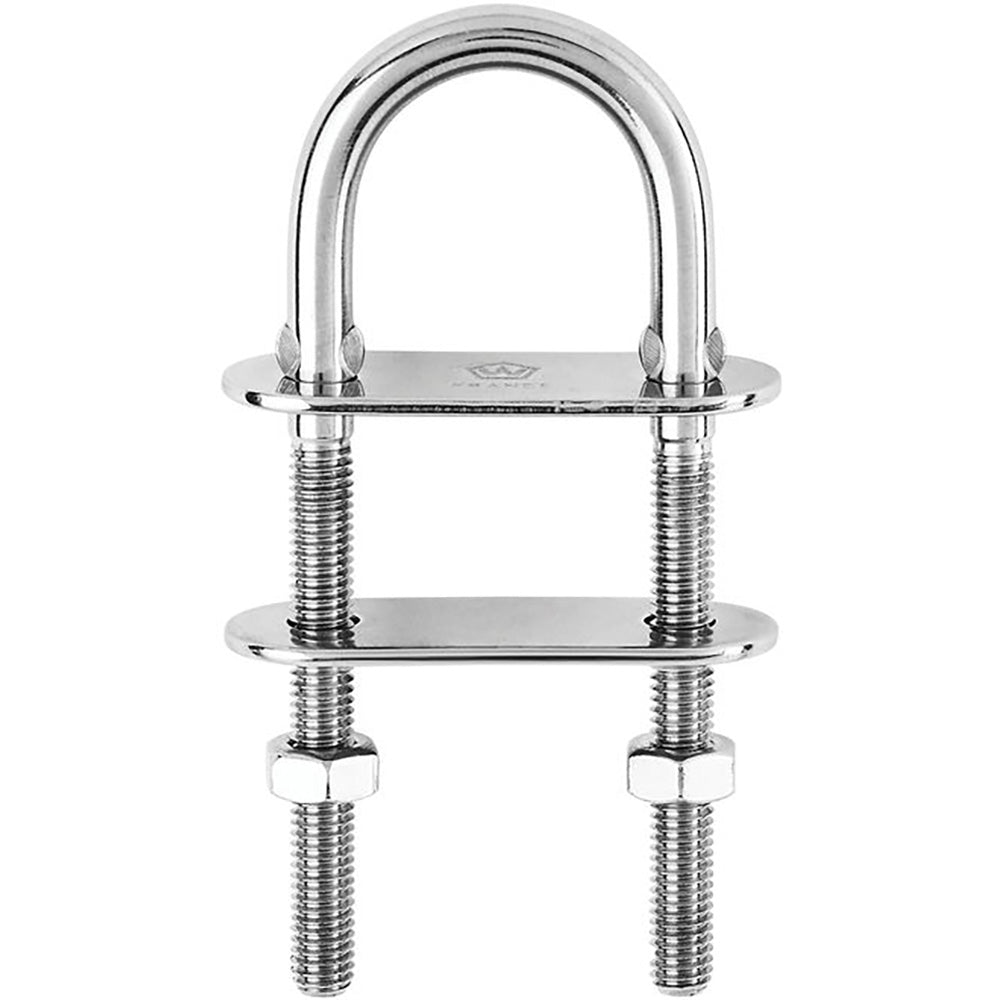

Wichard Marine U-Bolt Pad Eye with 10mm Diameter - 3-35/64" Length for Marine and Industrial Use

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.441 / (g) 200

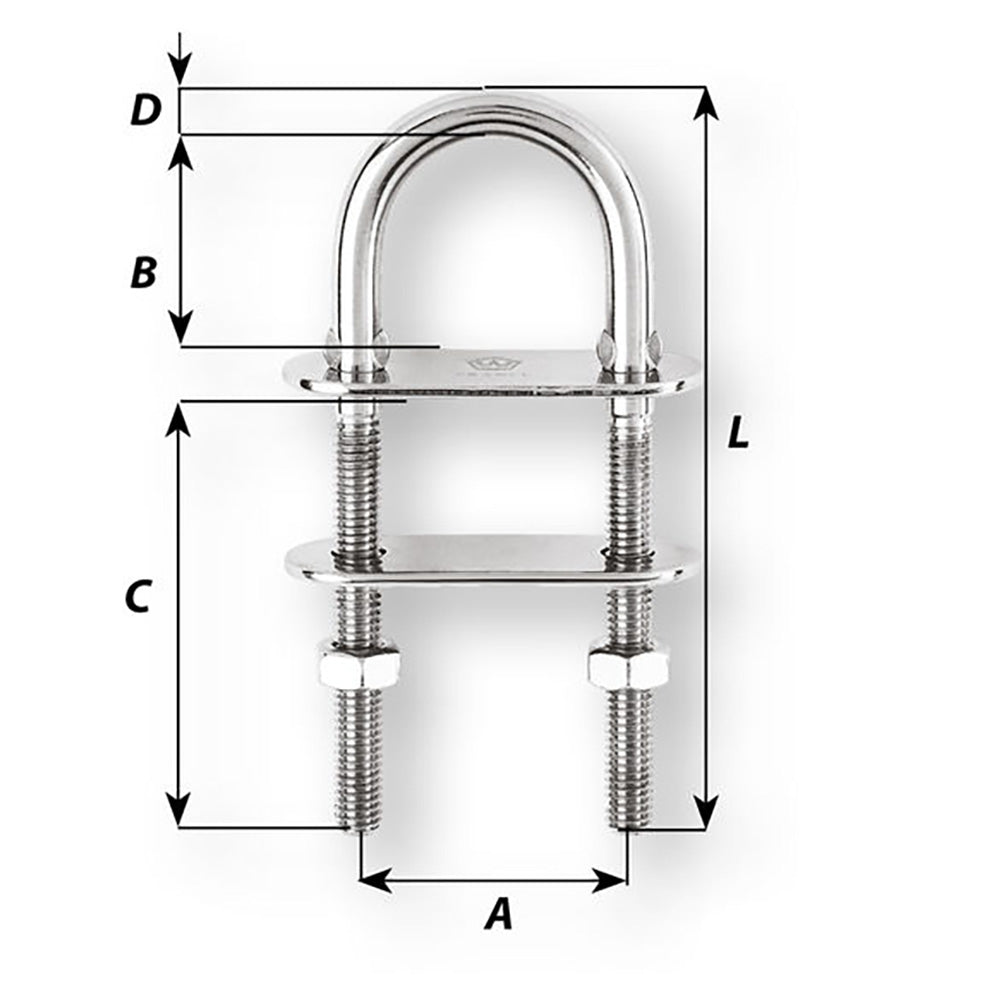

Dimensions:

• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 17/64" / (mm) 32
• C: (inch) 1 49/64" / (mm) 45
• D diameter: (inch) 25/64" / (mm) 10
• Length: (inch) 3 35/64" / (mm) 90
• Caption:
• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye (Part Number 6515W) is a versatile and durable fastening hardware designed for demanding marine and industrial applications. Crafted from high-quality 316L stainless steel, this fully drop-forged component offers exceptional strength and corrosion resistance, ensuring reliable performance in harsh environments. Its 10mm diameter and 90mm length make it suitable for a wide range of rigging, shrouds, lifelines, and block connections, providing both safety and stability during operation. The pad eye comes complete with bolts and a counter-plate, simplifying installation and ensuring a secure fit with a recommended maximum tightening torque of 36 Nm. The robust design supports a working load of up to 7,930 pounds and can withstand breaking loads of approximately 15,430 pounds, making it ideal for critical load-bearing applications. The compact weight of just 0.44 pounds allows for easy handling and installation without sacrificing strength or durability. Whether used in nautical settings or industrial environments, the Wichard Marine U-Bolt Pad Eye delivers dependable performance, safety, and longevity. Its precise dimensions and high-grade materials make it a trusted choice for professionals seeking quality hardware that meets rigorous standards and ensures safety in demanding conditions.

Features:

• Fully drop forged from high-quality 316L stainless steel for corrosion resistance and durability

• Supports outstanding working and breaking loads ideal for demanding applications

• Suitable for various fastening applications including shrouds, lifelines, and blocks

• Delivered with bolts and a counter-plate for straightforward installation

• Maximum tightening torque of 36 Nm ensures secure fastening
