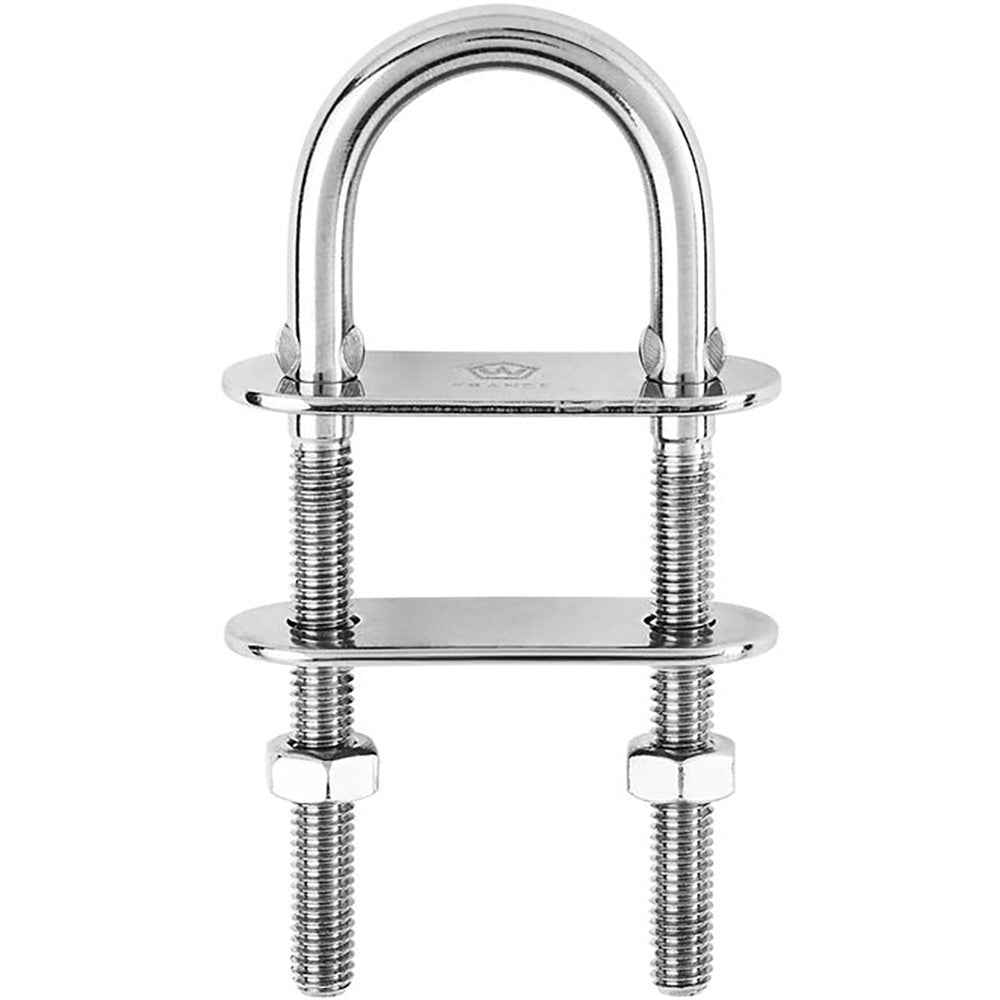

Wichard Marine U-Bolt Pad Eye with 6mm Diameter, 90mm Length, and Stainless Steel Construction

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 7.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.148 / (g) 67

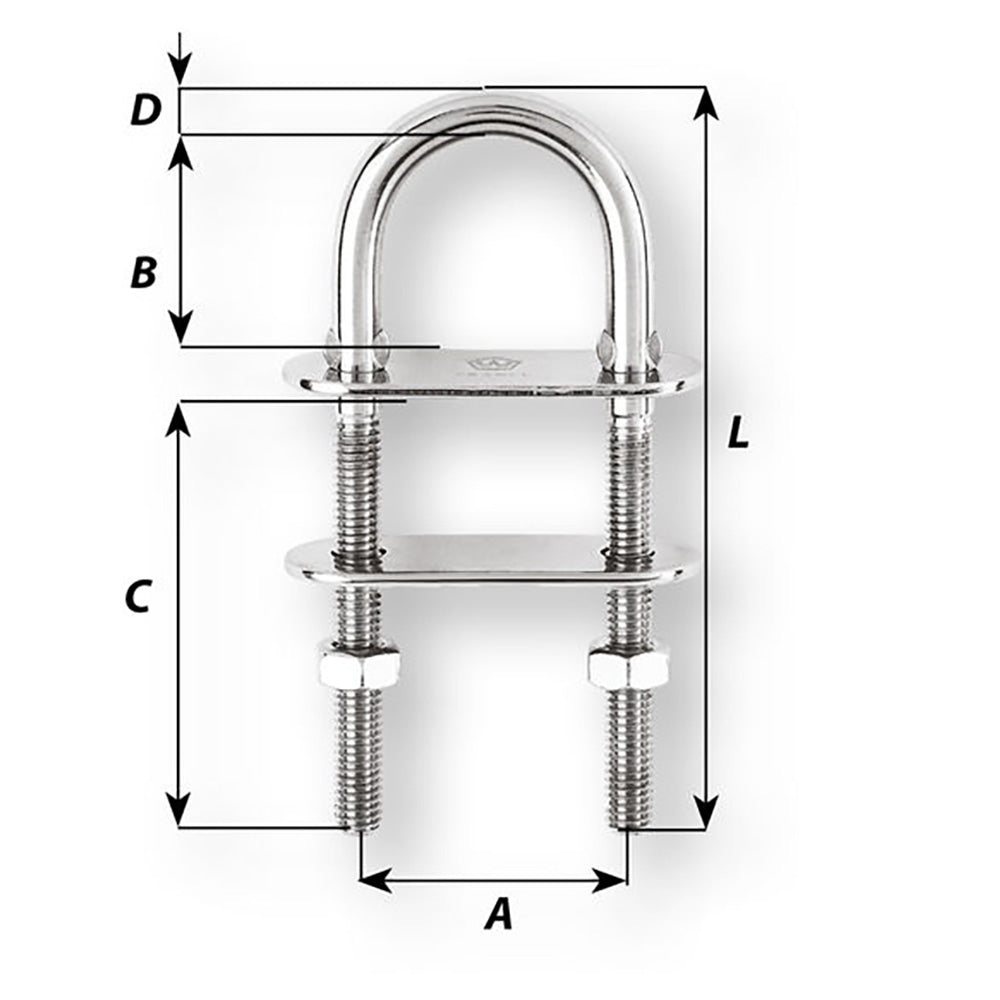

Dimensions:

• A: (inch) 1 17/64" / (mm) 32
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 2 11/64" / (mm) 55
• D diameter: (inch) 15/64" / (mm) 6
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6523W, is a robust and reliable hardware component designed for demanding marine and industrial applications. Crafted from high-quality 316L stainless steel, this drop-forged pad eye offers exceptional strength and durability, making it suitable for securing shrouds, lifelines, blocks, and other critical fastening points. Its corrosion-resistant material ensures long-term performance even in harsh environments, providing peace of mind during navigation or heavy-duty operations.
The pad eye features a 6mm (15/64 inch) diameter eyelet and measures approximately 3-3/8 inches (90mm) in length, with a total width of about 1-1/16 inches (27mm). Its design includes a working load capacity of up to 2,820 pounds (1,280 kg) and a breaking load of 6,610 pounds (3,000 kg), making it suitable for both safety-critical and load-bearing applications. The pad eye is delivered complete with bolts and a counter-plate, simplifying installation. When tightening, ensure a torque of up to 7.5 Nm for optimal safety and performance.
Ideal for marine, industrial, and rigging applications, the Wichard Marine U-Bolt Pad Eye combines strength, versatility, and ease of use. Its specifications and high-quality construction make it an essential component for secure fastening tasks, ensuring stability and safety in various environments. Whether used on boats, rigging setups, or industrial structures, this pad eye provides dependable performance when it matters most.

Features:

• Entirely drop forged product made from high-quality stainless steel

• Outstanding working and breaking loads for heavy-duty applications

• Suitable for fastening shrouds, lifelines, blocks, and more

• Delivered with bolts and a counter-plate for quick installation

• Maximum tightening torque of 7.5 Nm ensures secure fastening
