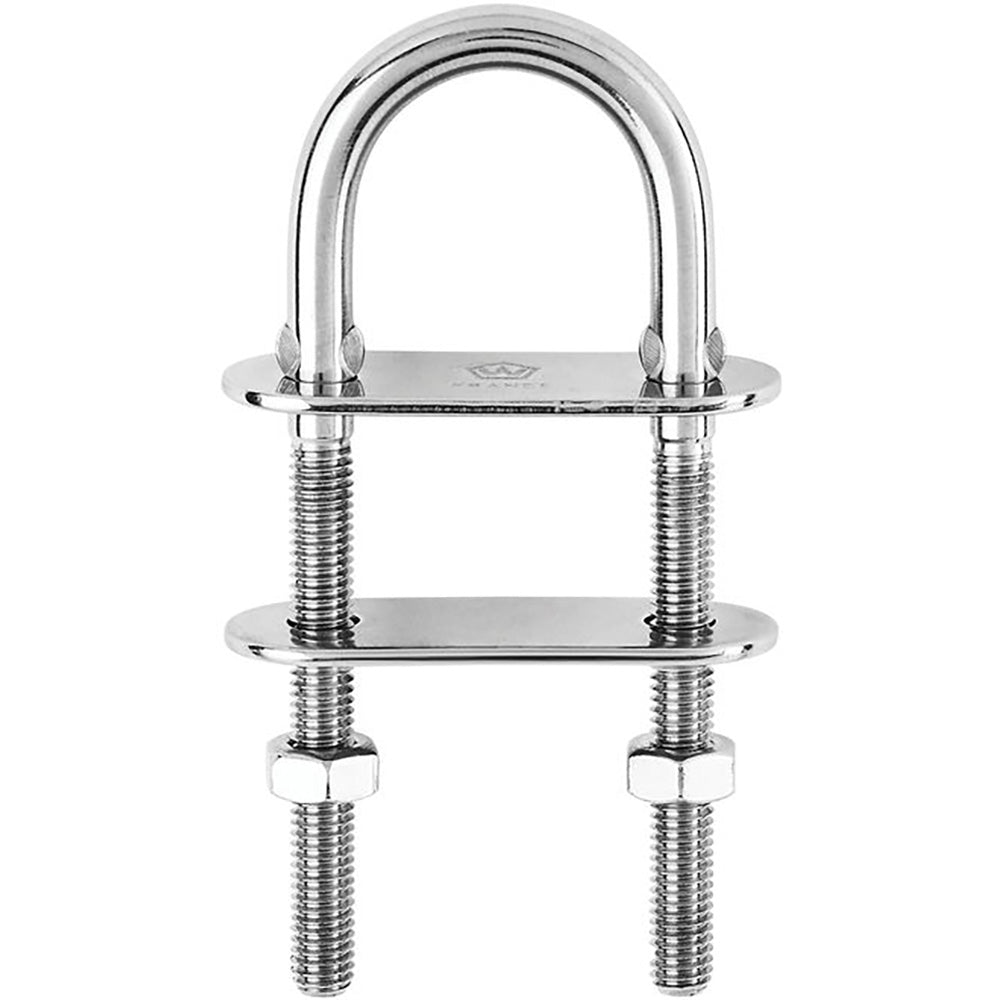

Wichard Marine U-Bolt Pad Eye with 8mm Diameter and 100mm Length

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 18 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 10580 / (kg) 4800
• Weight: (lb) 0.28 / (g) 127

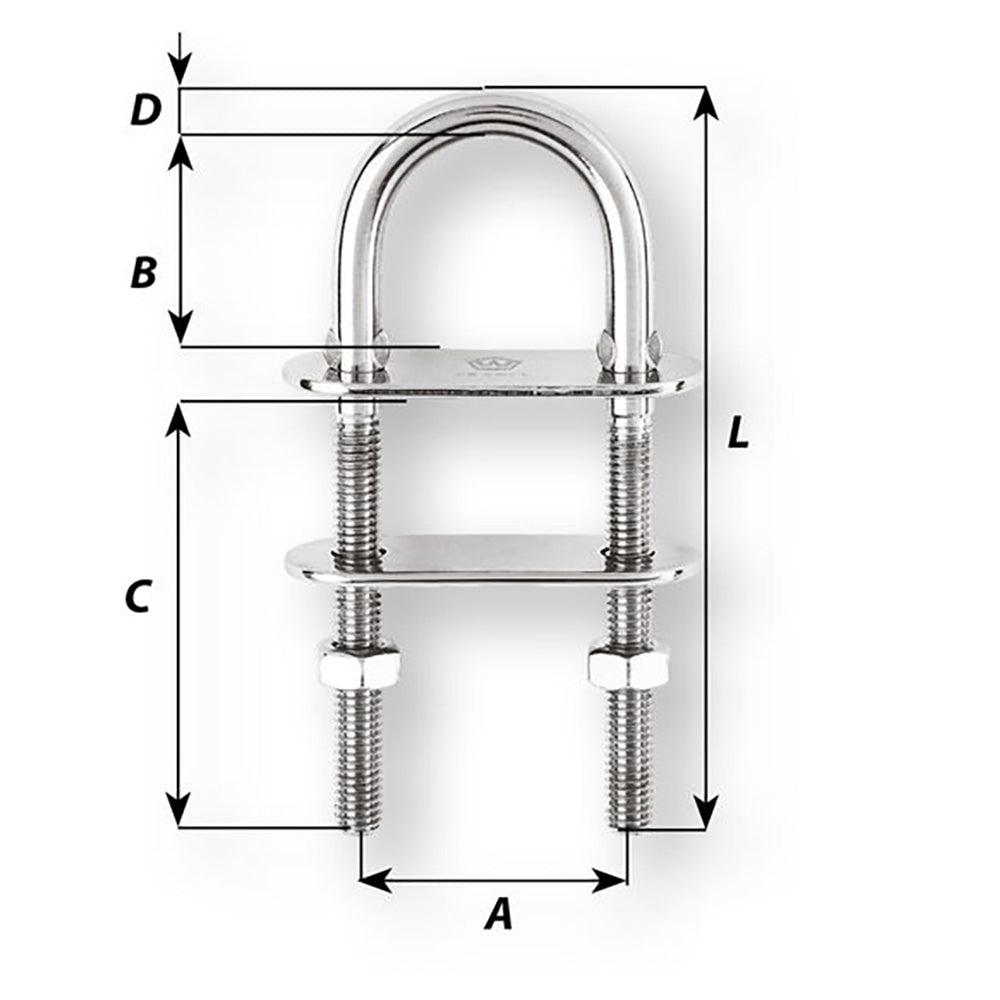

Dimensions:

• A: (inch) 1 27/64" / (mm) 36
• B: (inch) 1 3/16" / (mm) 30
• C: (inch) 2 23/64" / (mm) 60
• D diameter: (inch) 5/16" / (mm) 8
• Length: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye (Part Number 6524W) is a high-performance, stainless steel fastening component designed for demanding nautical and industrial applications. Crafted from durable 316L stainless steel, this drop-forged pad eye offers excellent strength and corrosion resistance, making it ideal for securing shrouds, lifelines, and blocks in marine environments. Its robust construction ensures outstanding working and breaking loads, providing safety and reliability in critical situations. The pad eye features a 5/16-inch diameter and measures approximately 3-15/16 inches in length, with mounting dimensions optimized for versatile use. Delivered with bolts and a counter-plate, it simplifies installation and ensures a secure fit, with a maximum tightening torque of 18 Nm to prevent over-tightening or damage. Suitable for both nautical and industrial applications, the Wichard Marine U-Bolt Pad Eye is an essential component for demanding fastening tasks, offering a high safety factor and long-lasting performance. Whether used in rigging, lifeline setups, or structural attachments, this pad eye guarantees strength, durability, and ease of use for professional and DIY projects alike.

Features:

• Entirely drop forged from high-quality stainless steel for maximum strength and corrosion resistance

• Outstanding working load of 5,290 pounds and breaking load of 10,580 pounds

• Designed for versatile fastening applications including shrouds, lifelines, and blocks

• Supplied with bolts and counter-plate for straightforward installation

• Maximum tightening torque of 18 Nm ensures secure fastening without damage
