Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

97646

$143.97 USD
$143.97 USD
Sale Sold out
Shipping

Low stock: 1 left
  • 30-Day Returns
  • Secure Checkout
  • Free Shipping — Contiguous U.S.

Shipping & Delivery

Free standard shipping is available on all orders shipping within the Contiguous United States, with no minimum order. Alaska and Hawaii are excluded from free shipping. Orders are typically processed within 1–2 business days. See our Shipping Policy for complete terms.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

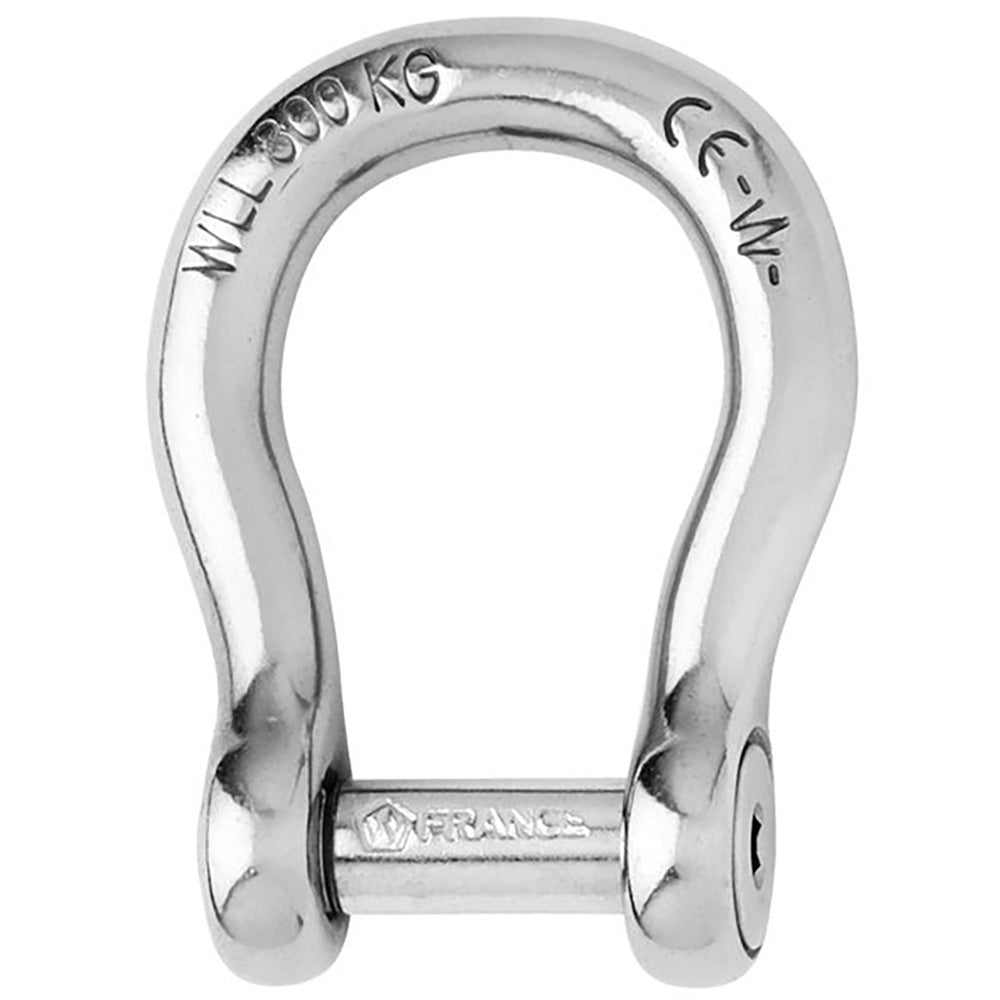

Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

Features:

  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal to link chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced
  • To be used when ample room is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 4580 / (kg) 2080
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.489 / (g) 222

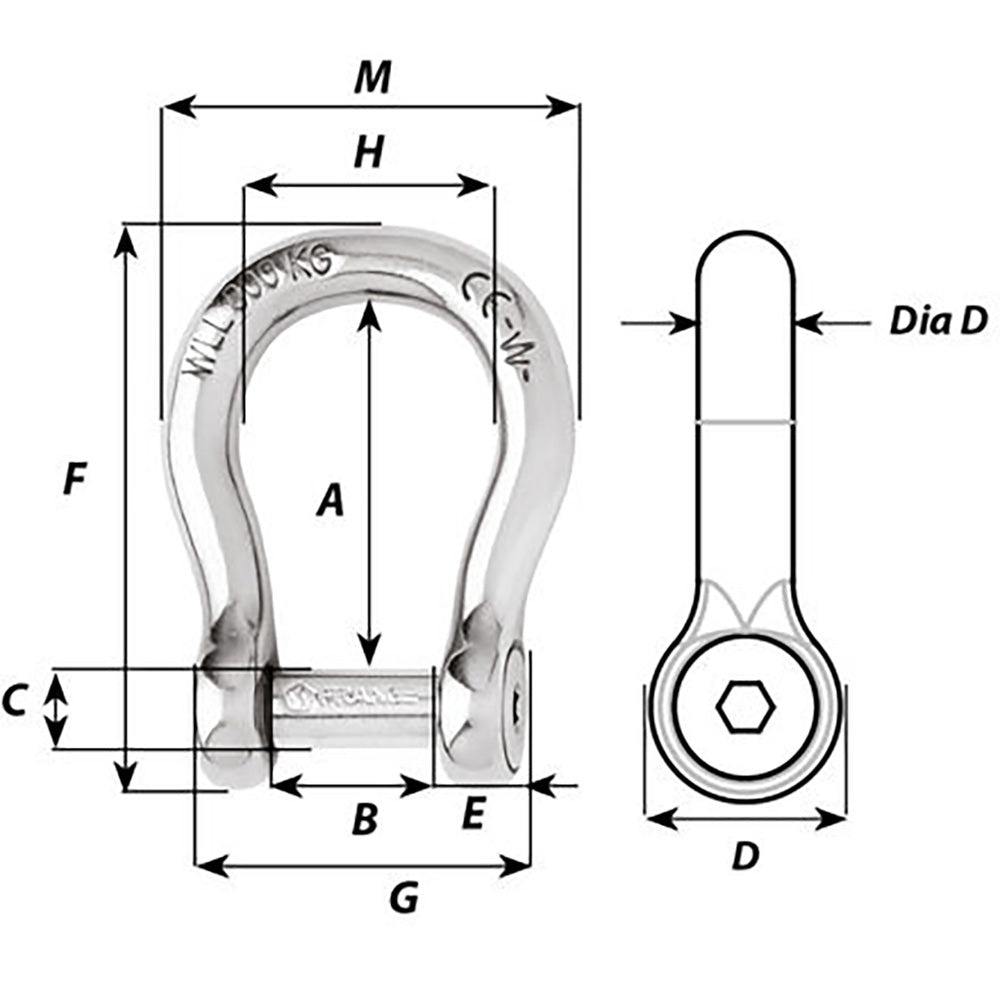

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 15/32" / (mm) 12
  • D: (inch)15/16" / (mm) 24
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 25/64" / (mm) 10
  • F: (inch) 1 1/2" / (mm) 38
  • M: (inch) 2 31/64" / (mm) 63

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual
