60 AMP MPPT Charge Controller
Enhanced Energy Optimization SmartSolar Performance.
The Xantrex Solar Charger Controller MPPT60 delivers superior efficiency and performance, supporting up to 150V and 60A for optimal power harvesting and seamless scalability in your solar system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it offers up to 30% more power compared to PWM charge controllers, enhancing overall energy efficiency. Compatible with 12V, 24V, 36V, and 48V battery systems, the MPPT60 optimizes performance across various energy requirements. This controller provides real-time energy monitoring and comprehensive historical data, empowering informed decisions for improved system performance, energy savings, and reliability.
Features:
- Ultra-fast tracking speed including multiple power point peaks with a 99.5% efficiency rating
- Xantrex MPPT control algorithm maximizes solar system efficiency and energy harvesting effectiveness
- Manages and optimizes power output from a diverse array of solar panels under varying environmental conditions
- Regulates power and current flow to protect and prolong battery lifespan
- The batterys status is monitored, and the charging current is adjusted to prevent overcharging when fully charged
- Protection against short-circuiting enhances safety, while protection against input overloading enhances
- system reliability and longevity
- Battery temperature compensation boosts both system performance and charging efficiency
- Real-time monitoring provides data on energy usage and solar power system efficiency
- Dynamic power reduction prevents overheating and improves battery performance and safety
Specifications:

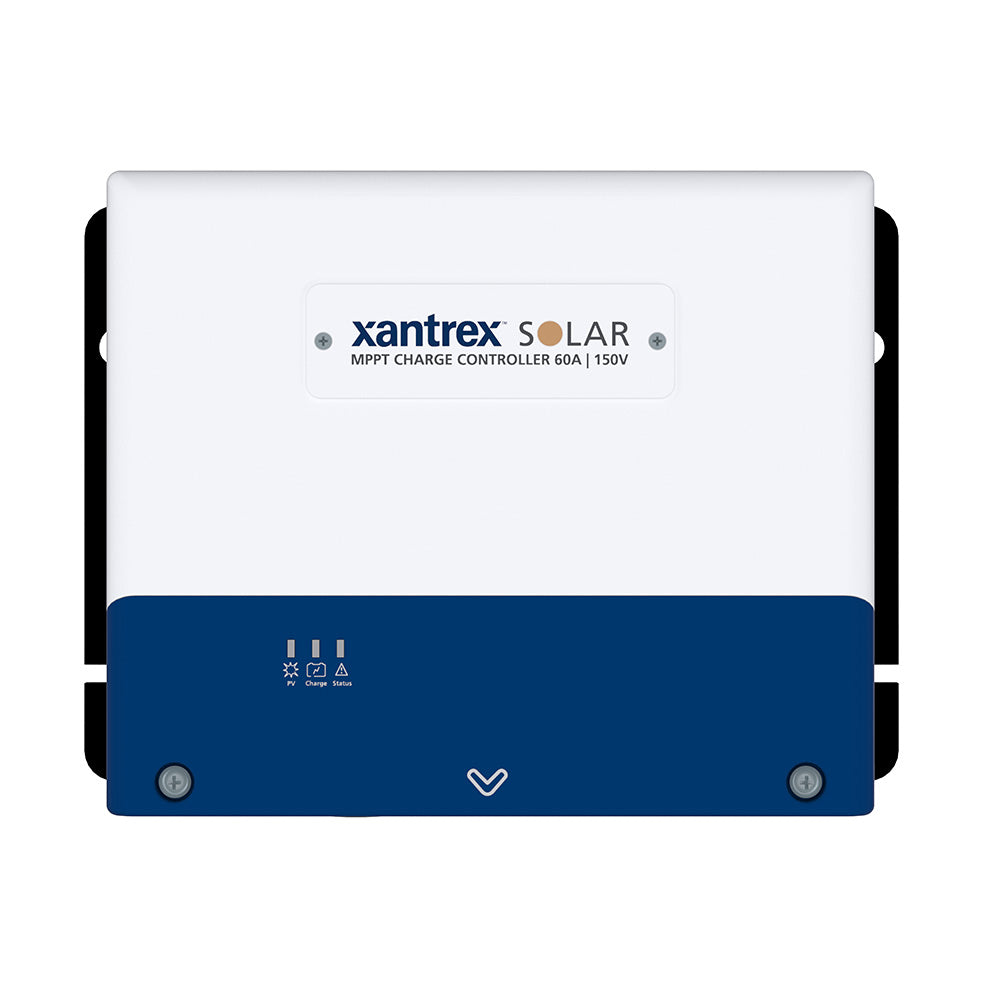

- LED indicators display PV charging, charger stage, and event status
- Remote panel for monitoring and setting (requires the Solar MPPT Remote Panel)
- 30% Higher than the PWM load
- RV short-circuit protection, charge over-current protection
- RV-C, Modbus, and Bluetooth built-in
- 12/24/36/48V System Voltage
- MPPT tracking efficiently is up to 99.5%
- Lead-acid, AGM (Sealed), Gel, Flooded, Lithium batteries and custom
- Current-limiting charging mode
- Xantrex App for ultimate control
- Compliance: UL1741CSA C22.2#107.1
Xantrex MPPT60 60 Amp Solar Charge Controller delivers efficient solar power management for RV, off-grid, and battery-based solar systems. Designed for 12V, 24V, 36V, and 48V battery systems, this Xantrex solar charge controller supports up to 150V and 60A while using advanced Maximum Power Point Tracking technology to improve solar energy harvesting compared with PWM charge controllers.
The MPPT60 uses ultra-fast tracking to identify multiple power point peaks and provides tracking efficiency of up to 99.5%. Its charging controls monitor battery status, regulate current, compensate for battery temperature, and help prevent overcharging when the battery is fully charged. Current limiting and dynamic power reduction further support dependable operation across changing solar and environmental conditions.
Built-in RV-C, Modbus, and Bluetooth connectivity enables real-time monitoring through the Xantrex App, while LED indicators display PV charging, charger stage, and event status. The controller is compatible with lead-acid, AGM sealed, gel, flooded, lithium, and custom battery profiles. The Xantrex MPPT60, part number 710-6048-01, is a practical choice for customers seeking scalable solar charging control and clear system performance data.
Key Features:
-
60A MPPT charging: Manages solar charging for 12V, 24V, 36V, and 48V battery systems with support for up to 150V input.
-
Efficient power tracking: Ultra-fast MPPT tracking identifies multiple power point peaks with efficiency of up to 99.5%.
-
Battery charging management: Adjusts charging current, provides temperature compensation, and helps prevent overcharging.
-
Broad battery compatibility: Supports lead-acid, AGM sealed, gel, flooded, lithium, and custom battery profiles.
-
Connected monitoring: Built-in RV-C, Modbus, and Bluetooth support works with the Xantrex App for system monitoring and control.
-
Protective control functions: Includes short-circuit protection, charge over-current protection, current-limiting charging mode, and dynamic power reduction.
Product Details:
-
Brand: Xantrex
-
Model: MPPT60
-
Part number: 710-6048-01
-
Product type: 60 amp MPPT solar charge controller
-
System voltage: 12V, 24V, 36V, and 48V
-
Maximum voltage: 150V
-
Battery compatibility: Lead-acid, AGM sealed, gel, flooded, lithium, and custom
-
Monitoring and communication: RV-C, Modbus, Bluetooth, LED indicators, and Xantrex App support
-
Remote panel: Supports monitoring and setting with the Solar MPPT Remote Panel, sold separately
-
Compliance: UL1741 and CSA C22.2#107.1
Choose the Xantrex MPPT60 710-6048-01 for efficient solar charging control, flexible battery-system support, and connected monitoring in your solar power setup.
