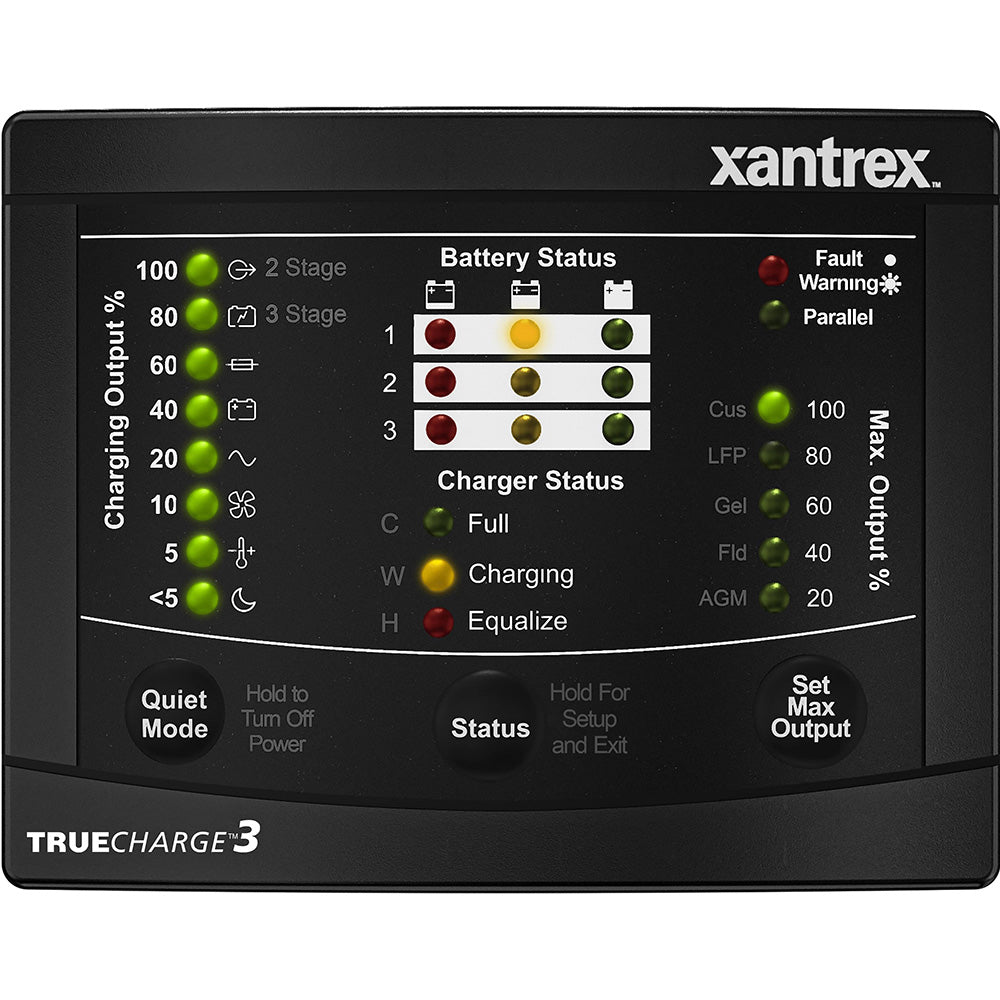

Xantrex TRUEcharge3 Remote Panel, Part Number 808-8040-10

TRUEcharge3 Remote Panel

Advanced Remote for Monitoring and Full Control of Battery Charger Performance

This full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the chargers onboard display. The Remote Panel reads like a fuel gauge and displays critical information on the charging of battery banks. It is very easy to install, read, and operate, connecting with the battery charger through the included telephone cable. The TRUECharge3 Remote Panel is designed for use with TRUECharge3 Battery Chargers.

Compatible with: TRUEcharge3 12V (20/40/60A) and TRUEcharge3 24V (10/20/30A)

Features:

• Full function compatibility with TRUEcharge3 battery chargers
• Provides additional features inaccessible via the chargers onboard display
• Allows charger to be powered on or placed on standby while AC power is connected
• Adjust maximum charger output current
• Displays individual battery bank status
• Connects two TRUEcharge3 chargers in parallel for up to 2x the output current
• FCC Class B compliant

Xantrex TRUEcharge3 Remote Panel provides full-function monitoring and control of compatible TRUEcharge3 battery chargers from a convenient remote location. Designed for boat owners, RV users, and other applications requiring accessible battery charging information, this remote panel makes it easier to review battery bank status and manage charger operation without relying solely on the charger’s onboard display.

The TRUEcharge3 Remote Panel displays charging information in an easy-to-read, fuel-gauge-style format and provides access to additional charger functions. Users can power the charger on or place it in standby while AC power remains connected, adjust the maximum charger output current, and view the status of individual battery banks. The panel also supports connecting two TRUEcharge3 chargers in parallel for up to twice the output current, when used with compatible charger configurations.

Installation and operation are designed to be straightforward. The panel connects to the battery charger using the included telephone cable and is compatible with Xantrex TRUEcharge3 12V and 24V battery chargers. Its compact panel format is suited for remote mounting where convenient access to charger controls and information is important.

Key Features:

• Full-function remote control: Monitor and manage compatible TRUEcharge3 battery charger performance from a remote location.
• Fuel-gauge-style display: View critical battery charging information in an easy-to-read format.
• Expanded charger access: Provides functions not available through the charger’s onboard display.
• Adjustable charging output: Set the maximum charger output current to support charging management needs.
• Battery bank monitoring: Displays the status of individual battery banks.
• Parallel charger support: Connects two TRUEcharge3 chargers in parallel for up to 2x the output current.

Product Details:

• Brand: Xantrex
• Part number: 808-8040-10
• Compatible chargers: TRUEcharge3 12V models rated at 20A, 40A, or 60A; TRUEcharge3 24V models rated at 10A, 20A, or 30A
• Connection: Includes telephone cable for connection to the battery charger
• Compliance: FCC Class B compliant

Choose the Xantrex TRUEcharge3 Remote Panel for convenient remote access to compatible battery charger monitoring and control functions.
